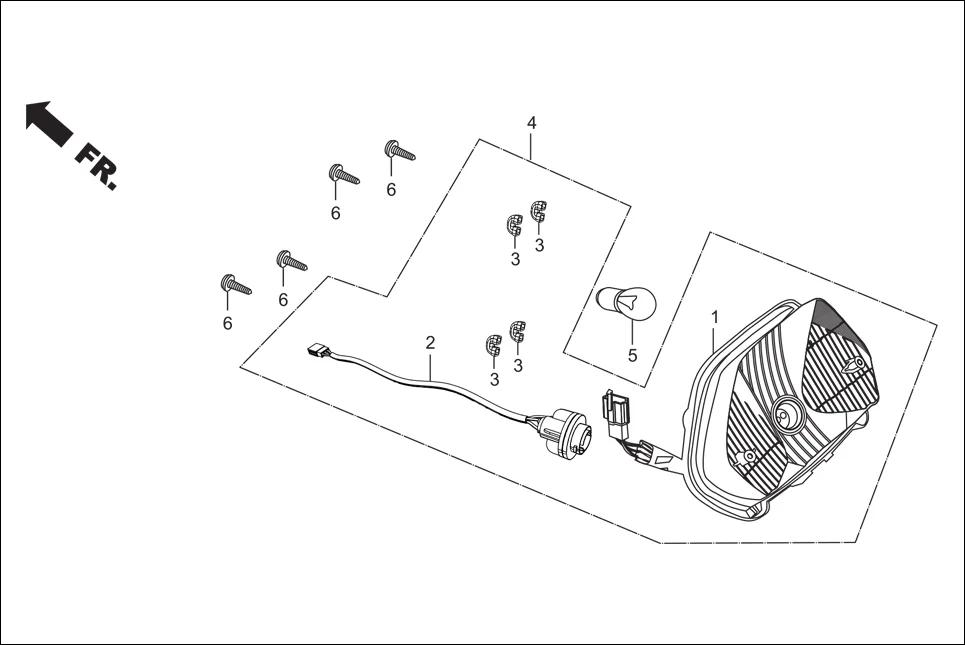

F-21-TAIL LIGHT
HeroSuper Splendor (Nov, 2017) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33702-AAG-30099 | UNIT COMP TAIL LAMP | 1 | |
| 2 | 33703-AAG-30099 | SOCKET COMP. TAIL LAMP | 1 | |
| 3 | 33706-ABA-000 | PIPE CP | 4 | |
| 4 | 3370B-AAG-30099 | UNIT TAIL LIGHT | 1 | |
| 5 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 2 | |
| 6 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 |
