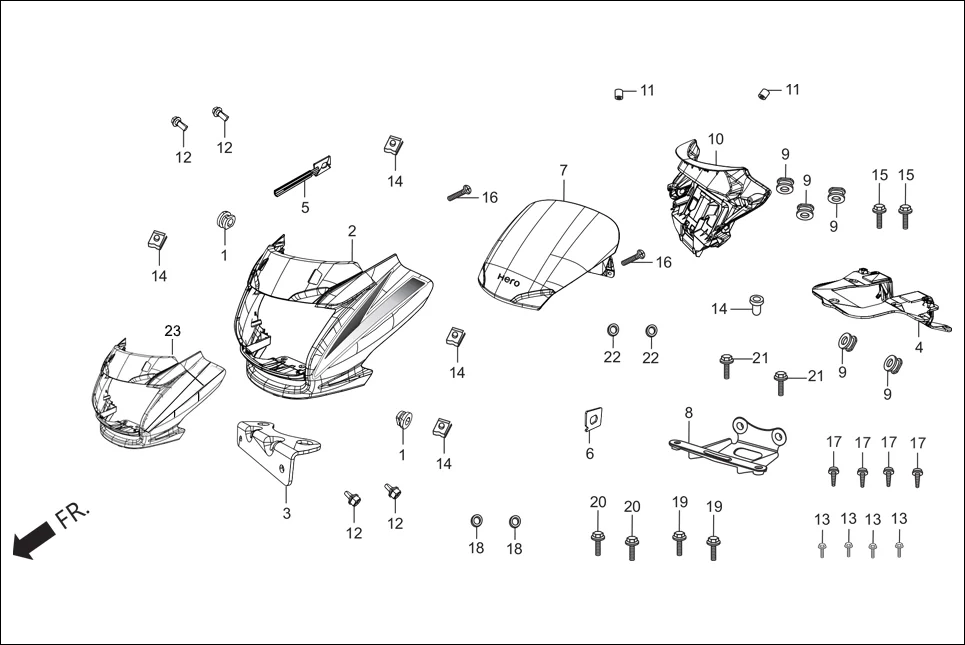

F-1A - FR. COVER
Hero Super Splendor (Nov, 2017) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 2 | |
| 2 | 61300-AAG-300R | SET FR. COWL (BLACK-1) NH-1 | 1 | |
| 2 | 61300-AAG-300S | SET FR. COWL (BLACK-2) NH-1 | 1 | |
| 2 | 61300-AAG-300T | SET FR. COWL (BLACK-3) NH-1 | 1 | |
| 2 | 61300-AAG-300U | SET FR. COWL (CANDY BLAZING RED) | 1 | |
| 2 | 61300-AAG-300V | SET FR. COWL (EBONY GRAY ME.) | 1 | |
| 3 | 61311-AAG-300 | BRACKET FRONT COWL | 1 | |
| 4 | 61312-AAG-300 | STAY METER MTG. | 1 | |
| 5 | 61313-AAG-300 | STAY WINKER R COMP. | 1 | |
| 6 | 61314-AAD-220 | STAY WINKER | 1 | |
| 6 | 61314-ACK-400 | STAY WINKER | 1 | |
| 7 | 6410A-AAG-300 | SET WIND SCREEN | 1 | |
| 8 | 64315-KTC-A20 | BRAKET COMP., FR. NO. PLATE | 1 | |
| 9 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 5 | |
| 10 | 83402-AAG-300 | PANEL INNER | 1 | |
| 11 | 84706-163-670 | COLLAR TAIL LIGHT MTG | 2 | |
| 12 | 90101-AAG-300 | BOLT SPECIAL 5X11.5 | 4 | |
| 13 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 14 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 15 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
| 16 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 17 | 93903-24310 | SCREW, TAPPING, 4X12 | 4 | |
| 18 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 19 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 20 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 21 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 2 | |
| 22 | 94103-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 23 | 61301AAG300RS | COWL FR | 1 | |
