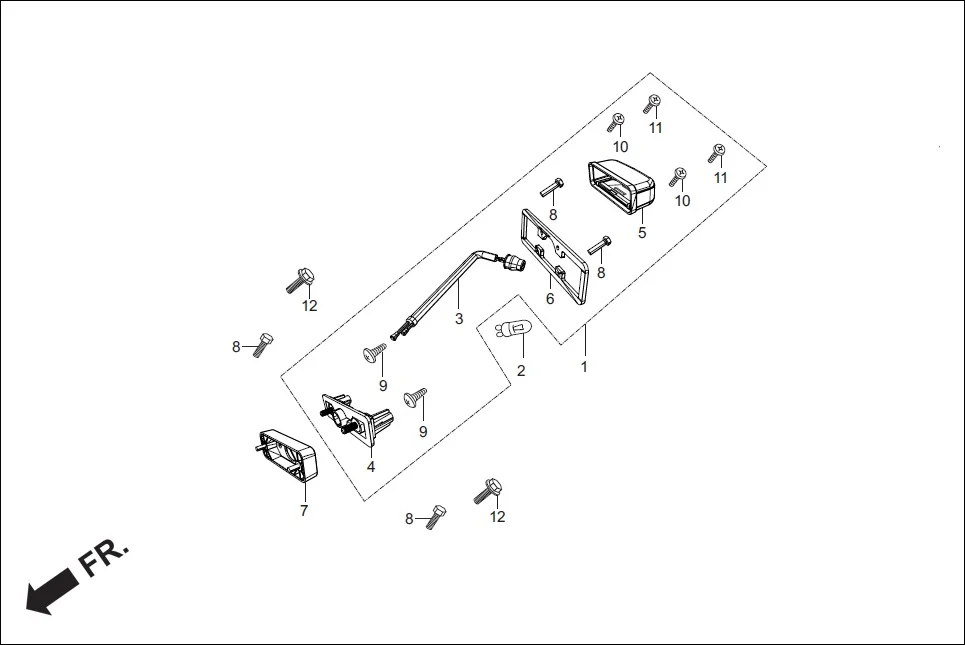

F-18A - LICENSE LIGHT
Hero Super Splendor (Nov, 2017) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3372B-AAG-30099 | LIGHT ASSY LICENSE | 1 | |
| 2 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 3 | 33721-AAG-00099 | SOCKET COMP DOMESTIC | 1 | |
| 4 | 33722-AAG-701 | BASE COMP | 1 | |
| 6 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 7 | 80201-AAG-300 | SPACER LICENSE PLATE LIGHT | 1 | |
| 8 | 92101-05020-0A | BOLT, HEX., 5X20 | 2 | |
| 9 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
| 10 | 93903-24310 | SCREW, TAPPING, 4X12 | 2 | |
| 11 | 93903-34380 | SCREW, TAPPING, 4X12 | 2 | |
| 12 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
