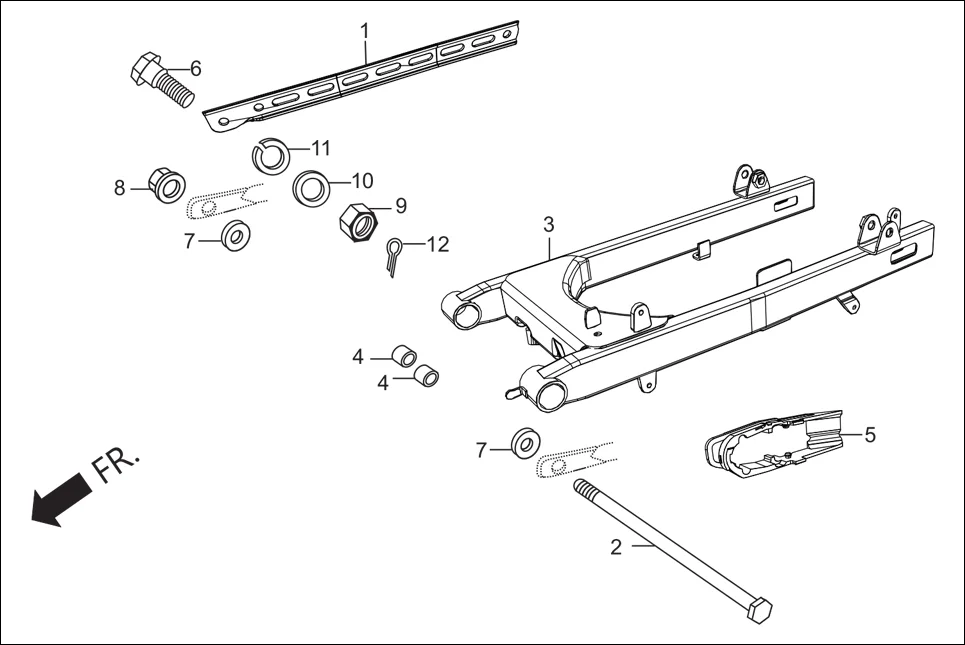

F-17A - SWINGARM/CHAIN CASE
Hero Super Splendor (Nov, 2017) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43431-KTR-900 | ARM, RR, BRAKE STOPPER | 1 | |
| 2 | 52101-KTC-900 | BOLT, SWINGARM PIVOT | 1 | |
| 3 | 52110-AAG-300 | SWINGARM COMP RR | 1 | |
| 4 | 52147-KTC-900 | RUBBER BUSH, RR. FORK PIVOT | 2 | |
| 5 | 52170-KTR-900 | SLIDER, CHAIN | 1 | |
| 6 | 90133-331-770 | BOLT, HEX., 8MM | 1 | |
| 7 | 90183-KTC-900 | WASHER, SPL., 12 MM | 2 | |
| 8 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 9 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 10 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 11 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 12 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
