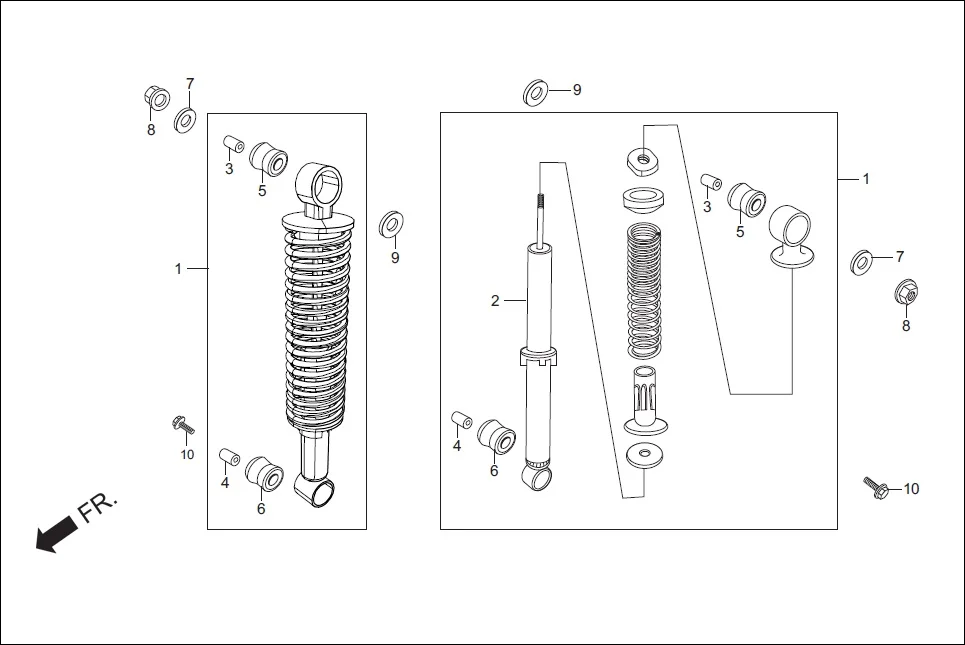

F-17 - REAR CUSHION
Hero Super Splendor (Nov, 2017) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KTC-A21 | CUSHION ASSY., REAR | 2 | |
| 2 | 52410-KTC-A21 | DAMPER COMP., REAR | 2 | |
| 3 | 52486-056-000 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 4 | 52486-KAG-900 | COLLAR ,RUBBER BUSH (UNDER) | 2 | |
| 5 | 52489-399-600 | BUSH ,RUBBER (UPPER) | 2 | |
| 6 | 52495-098-000 | BUSH, RUBBER (UNDER) | 2 | |
| 7 | 90551-178-000 | WASHER,SPL., 10MM | 2 | |
| 8 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 9 | 94101-12000 | WASHER, PLAIN, 12MM | 2 | |
| 10 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
