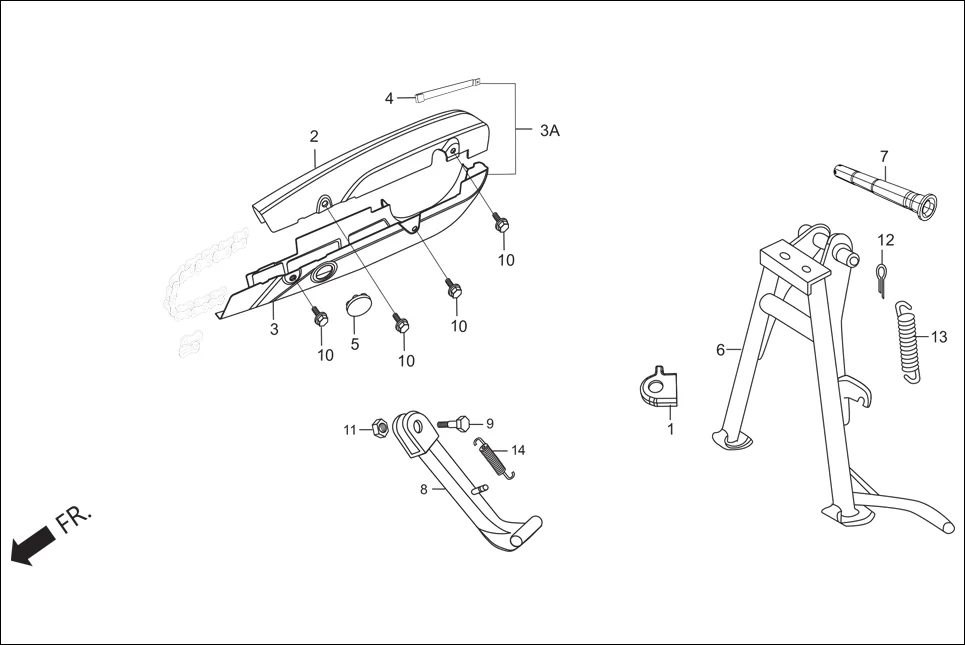

F-16A - CHAIN CASE /STAND
Hero Super Splendor (Nov, 2017) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-AAD-00099 | MAGNET HOLDER | 1 | |
| 2 | 40510-AAN-410 | CASE UP HALF DRIVE CHAIN | 1 | |
| 3 | 40520-AAN-410 | CHAIN CASE LOWER | 1 | |
| 3 | 4052A-AAN-410 | CHAIN CASE UND HALF SUB ASSY | 1 | |
| 4 | 40524-ABA-000 | PLATE CHAIN CASE LOWER | 1 | |
| 5 | 40545-ABA-000 | CAP, CHAIN PEEP HOLE | 1 | |
| 6 | 50500-KTR-A00 | STAND COMP.MAIN | 1 | |
| 7 | 50512-KTC-900 | PIPE, RR. BRAKE PIVOT | 1 | |
| 8 | 50530-KST-940 | BAR COMP., SIDE STAND | 1 | |
| 9 | 90107-AAD-000 | SCREW, SIDE STAND PIVOT | 1 | |
| 10 | 90111-ABA-000 | BOLT, FLANGE, 6MM | 4 | |
| 11 | 94030-10000 | NUT HEX., 10MM | 1 | |
| 12 | 94201-30250 | PIN, SPLIT, 3.0 X 25 | 1 | |
| 13 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 14 | 95014-72302 | SPRING, C SIDE STAND | 1 | |
