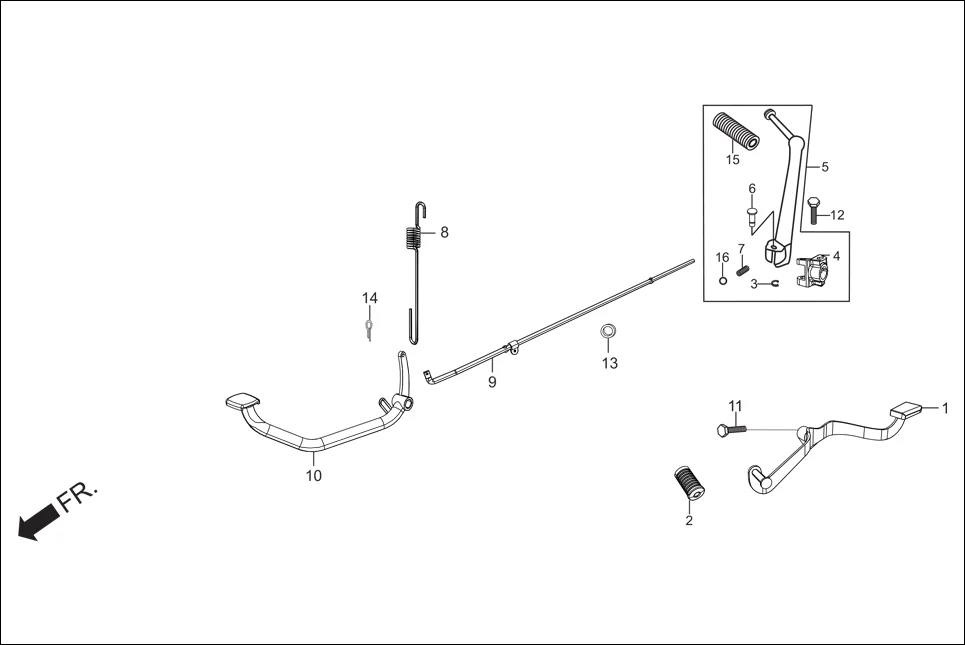

F-15A - PEDAL GEAR CHANGE/KICK STARTER/PEDAL BRAKE
Hero Super Splendor (Nov, 2017) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-AAG-300 | PEDAL GEAR CHANGE | 1 | |
| 2 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 3 | 28293-KAG-900 | CLIP, KICK STARTER | 1 | |
| 4 | 28302-KTR-840 | JOINT KICK ARM | 1 | |
| 5 | 2830A-KTR-840 | ARM ASSY. COMP. KICK STATER | 1 | |
| 6 | 28321-KTC-900 | PIN, KICK STARTER | 1 | |
| 7 | 28333-124-000 | SPRING, KICK STARTER STOPPER | 1 | |
| 8 | 35357-AAG-300 | SPRING STOP SWITCH | 1 | |
| 9 | 43451-AAG-300 | ROD COMP. RR. BRK. | 1 | |
| 10 | 46500-AAG-300 | PEDAL BRAKE | 1 | |
| 11 | 92101-06020-0A | BOLT HEX.6X20 | 1 | |
| 12 | 92101-08032-0A | BOLT HEX., 8 X 32 | 1 | |
| 13 | 94103-05800 | WASHER,PLAIN, 5.5MM | 1 | |
| 14 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 15 | 95011-51000 | RUBBER, A KICK STARTER | 1 | |
| 16 | 96211-08000 | BALL STEEL 8 MM | 1 | |
