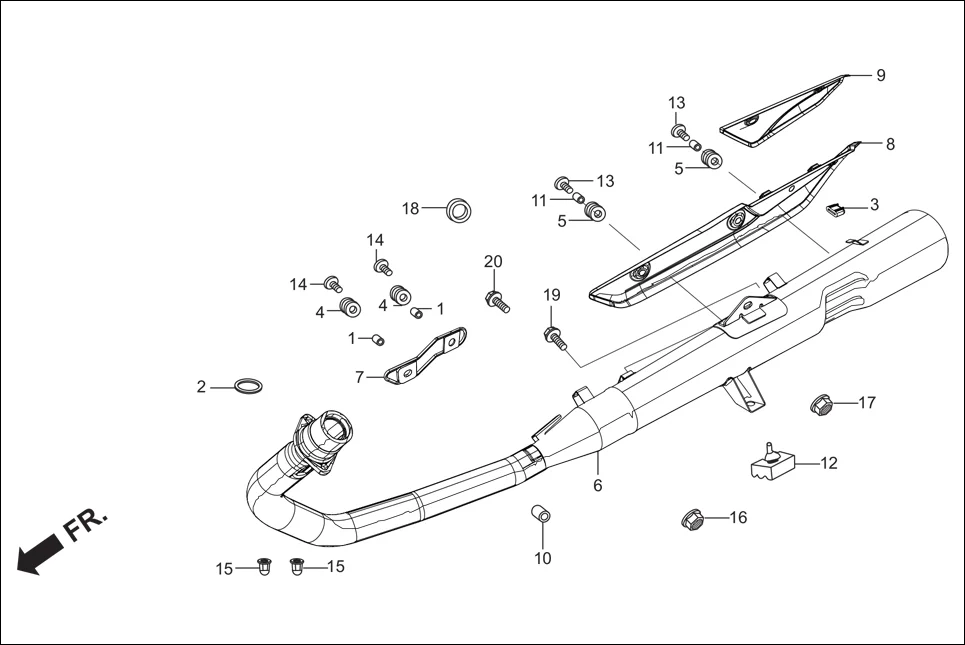

F-14 - MUFFLER
Hero Super Splendor (Nov, 2017) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17221-KA4-300 | COLLAR CONN TUBE | 2 | |
| 2 | 18291-AAT-000 | GASKET EX PIPE | 1 | |
| 3 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 4 | 18345-KST-940 | RUBBER PROTECTOR | 2 | |
| 5 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 4 | |
| 6 | 18350-AAG-300 | MUFFLER COMP EXH | 1 | |
| 7 | 18351-AAG-300 | COVER EXHAUST PIPE | 1 | |
| 8 | 18355-AAG-300 | COVER MUFFLER | 1 | |
| 9 | 18355-AAG-300024 | COVER MUFFLER 2 | 1 | |
| 10 | 18442-KRC-900 | COLLAR, MUFFLER MOUNT | 1 | |
| 11 | 33619-459-840A | COLLAR,WINKER STAY | 4 | |
| 12 | 50505-KCC-900 | STOPPER RUBBER, A STAND | 1 | |
| 13 | 90107-KAN-900 | BOLT, BODY COVER SET | 4 | |
| 14 | 90107-KST-940 | SCREW MUFF. PROTECTOR MOUNT | 2 | |
| 15 | 90304-KPH-900 | NUT, HEX. CAP, 8 MM | 2 | |
| 16 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 17 | 94050-10000 | NUT, FLANGE, 10MM | 1 | |
| 18 | 94103-10000 | WASHER, PLAIN, 10MM | 2 | |
| 19 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 1 | |
| 20 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
