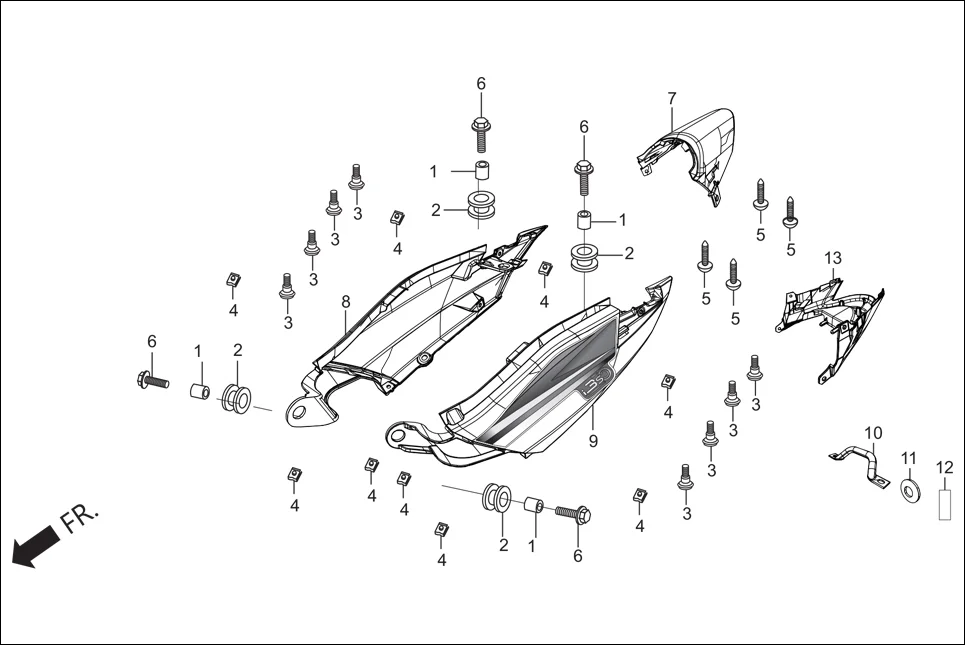

F-10A - RR. COWL
Hero Super Splendor (Nov, 2017) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17509-398-960 | COLLAR, TANK SET | 4 | |
| 2 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 4 | |
| 3 | 90101-GE0-000 | SCREW, HINGE PATCH | 8 | |
| 4 | 90320-GC3-000 | NUT, SPRING, M5 | 8 | |
| 5 | 93903-24310 | SCREW, TAPPING, 4X12 | 4 | |
| 6 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 4 | |
| 7 | 77235-AAG-300R | SET, CENTER RR COWL(BLACK, NH-1) | 1 | |
| 7 | 77235-AAG-300U | SET, CENTER RR COWL(CANDY BLAZING RED) | 1 | |
| 7 | 77235-AAG-300V | SET, CENTER RR COWL(EBONY GRAY ME.) | 1 | |
| 8 | 77240-AAG-300R | SET, R. BODY COWL (BLACK-1) | 1 | |
| 8 | 77240-AAG-300S | SET, R. BODY COWL (BLACK-2) | 1 | |
| 8 | 77240-AAG-300T | SET, R. BODY COWL (BLACK-3) | 1 | |
| 8 | 77240-AAG-300U | SET, R. BODY COWL (CANDY BLAZING RED) | 1 | |
| 8 | 77240-AAG-300V | SET, R. BODY COWL (EBONY GRAY ME) | 1 | |
| 9 | 77250-AAG-300R | SET, L. BODY COWL (BLACK-1) | 1 | |
| 9 | 77250-AAG-300S | SET, L. BODY COWL (BLACK-2) | 1 | |
| 9 | 77250-AAG-300T | SET, L. BODY COWL (BLACK-3) | 1 | |
| 9 | 77250-AAG-300U | SET, L. BODY COWL (CANDY BLAZING RED) | 1 | |
| 9 | 77250-AAG-300V | SET, L. BODY COWL (EBONY GRAY ME.) | 1 | |
| 10 | 77215-AAG-300 | CROSS PIPE | 1 | |
| 11 | 94101-08000 | WASHER, PLAIN, 8MM | 2 | |
| 12 | 90683-GAZ-930 | CLIP TRIM | 1 | |
| 13 | 77266-AAG-300R | SET, CENTER RR COWL(BLACK, NH-1) | 1 | |
| 13 | 77266-AAG-300U | SET, CENTER RR COWL(CANDY BLAZING RED) | 1 | |
| 13 | 77266-AAG-300V | SET, CENTER RR COWL(EBONY GRAY ME.) | 1 | |
