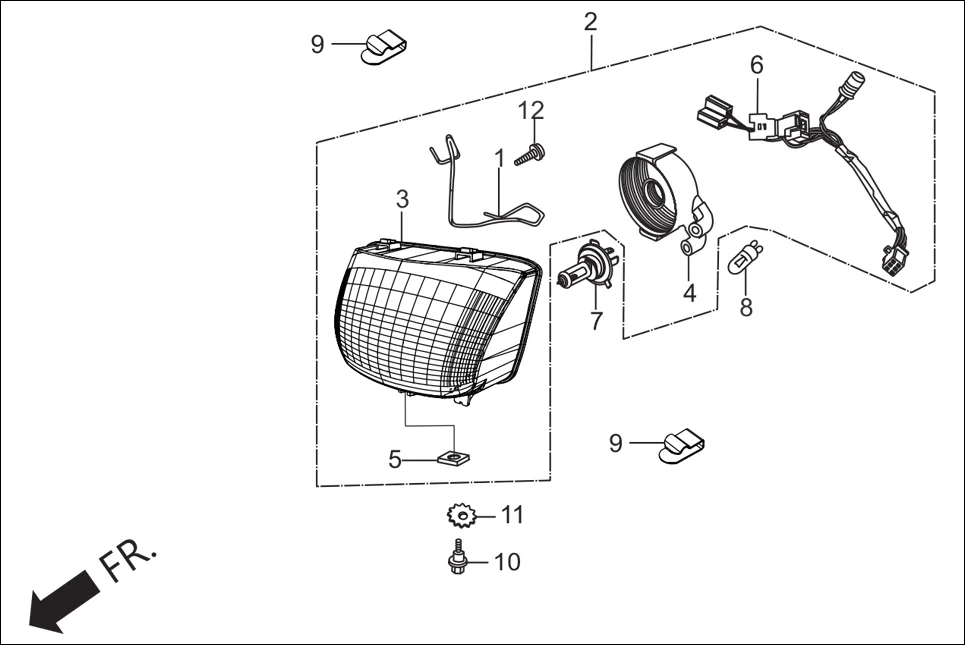

F-1 - HEAD LIGHT
Hero Super Splendor (Nov, 2017) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33108-KRY-900 | SPRING, SPC(BULB HOLDER) | 1 | |
| 2 | 3310A-AAG-H20 | LIGHT ASSY HEAD(W/O BULB) | 1 | |
| 3 | 33110-AAG-H01 | UNIT HEAD LIGHT | 1 | |
| 4 | 33126-KTC-901 | COVER, RUBBER | 1 | |
| 5 | 33128-GBL-000 | NUT, SPECIAL | 1 | |
| 6 | 33150-KTC-A20 | SOCKET ASSY., HEAD LIGHT | 1 | |
| 7 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 8 | 34920-AAG-300 | BULB WEDGE BASE (T10 12V 3W) | 1 | |
| 9 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 10 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
| 11 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
| 12 | 93901-04012-00 | SCREW, TAPPING SPL., 4 X 12 | 1 | |
