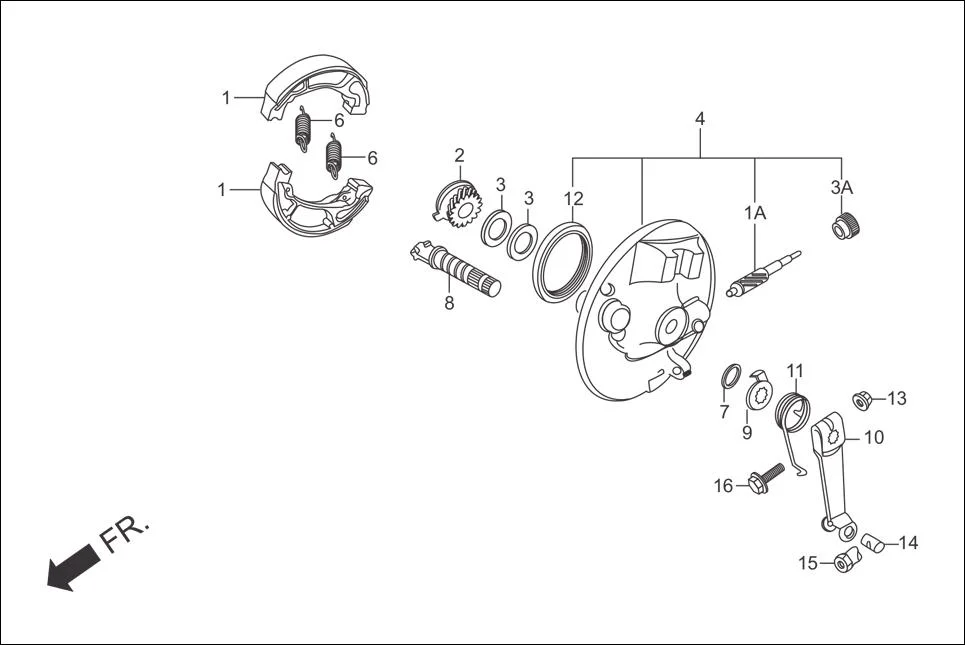

F-8-SPOKE - FR. BRAKE PANEL
Hero Super Splendor (Jan, 2014) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 1 | 44805-KTC-900 | PINION, SPEEDOMETER | 1 | |
| 2 | 44806-KST-900 | GEAR, SPEEDOMETER | 1 | |
| 3 | 44809-170-000 | WASHER, SPEEDOMETER GEAR | 2 | |
| 3 | 44810-KTC-900 | BUSH, PINION | 1 | |
| 4 | 45010-AAD-000 | PANEL SUB COMP. FR. BRAKE | 1 | |
| 6 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 7 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 8 | 45141-KTC-900 | CAM FR. BRAKE | 1 | |
| 9 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 10 | 45410-KTR-A20 | ARM, FR. BRAKE | 1 | |
| 11 | 45435-GB2-720 | SPRING, BRAKE ARM RETURN | 1 | |
| 12 | 91251-GK4-000 | OIL SEAL, 47X60X7 | 1 | |
| 13 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 14 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 15 | 95015-42000 | NUT B ADJUST | 1 | |
| 16 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
