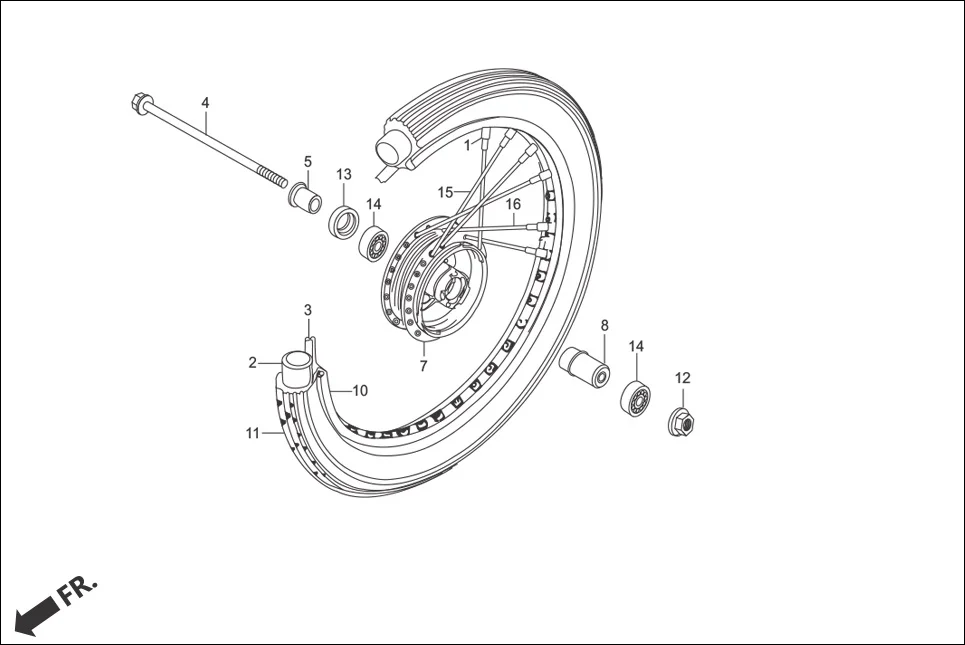

F-9-SPOKE - FRONT WHEEL
Hero Splendor Pro (Oct, 2015) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42603-198-900 | NIPPLE, SPOKE-9 | 36 | |
| 2 | 42712-KCS-920 | TUBE, TYRE (2.75 X 18) | 1 | |
| 3 | 42713-KFN-850 | FLAP, TYRE (1.40 X 18) | 1 | |
| 4 | 44301-KTR-700 | AXLE, FR. WHEEL | 1 | |
| 5 | 44311-KRC-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 7 | 44601-KTR-940Z | HUB COMP., FR. WHEEL (CSM) | 1 | |
| 8 | 44620-198-900 | COLLAR, FR. AXLE DISTANCE | 1 | |
| 10 | 44701-AAC-H00 | RIM FRONT WHEEL | 1 | |
| 11 | 44711-KFN-850R | TYRE, FR. (2.75-18 42P) | 1 | |
| 12 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 13 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 14 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 15 | 97252-51162-10 | SPOKE,A 9 X161 | 18 | |
| 16 | 97603-51162-10 | SPOKE, A 9 X 161 | 18 | |
