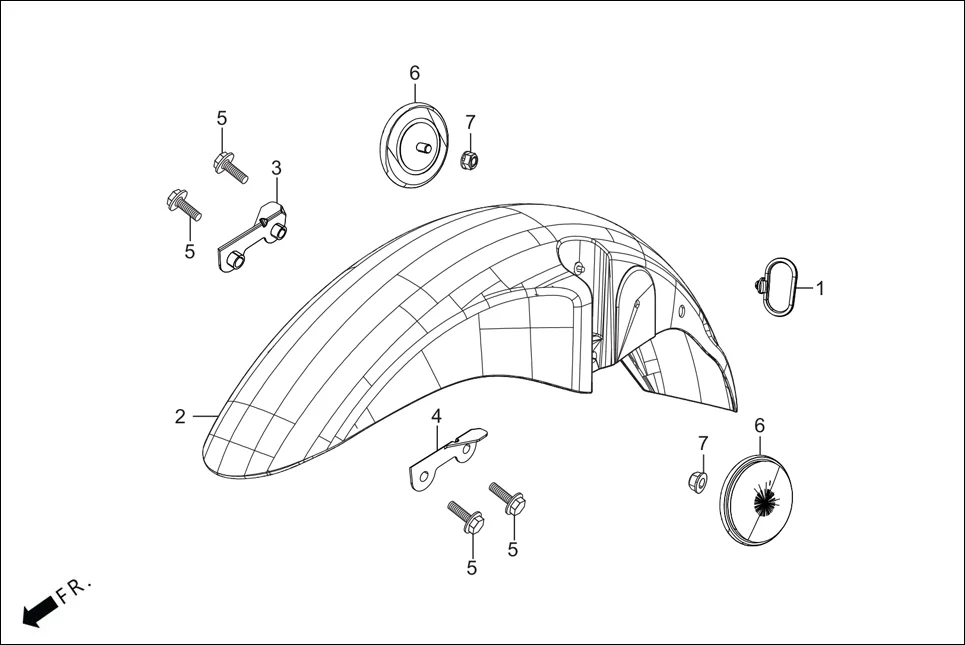

F-6-SELF - FENDER FRONT
Hero Splendor Plus(Jan, 2023) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-AAF-400 | GUIDE, FR. (FENDER) CABLE | 1 | |
| 2 | 61100-KST-940ZA | FENDER COMP., FRONT (BLACK) | 1 | |
| 2 | 61100-AAE-500S | FENDER COMP FR(FORCE SILVER METALLIC) | 1 | |
| 3 | 61103-KST-940 | COLLER, FR. FENDER R | 1 | |
| 4 | 61104-KST-940 | COLLER, FR. FENDER L | 1 | |
| 5 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 6 | 33760-AAE-201 | REFLEX REFLECTOR FR. SIDE | 2 | |
| 7 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
