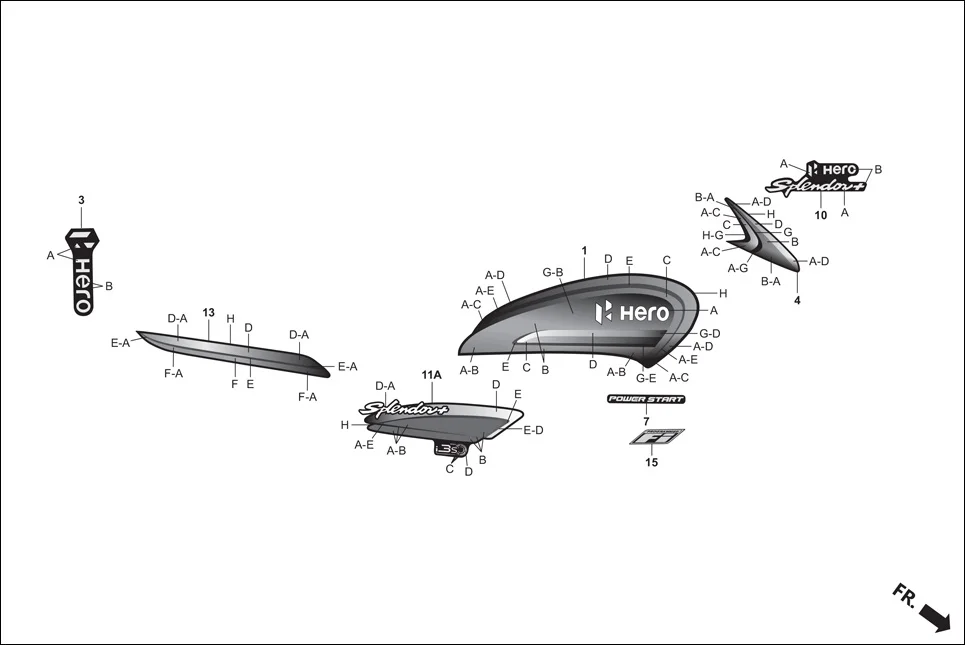

F-27-SELF - STRIPES/MARK

Hero Splendor Plus(Jan, 2023) · 35 parts

Parts in This Assembly (35)

Ref #	Part Number	Description	Qty
1	17595-AAE-300R	STRIPE, R FUEL TANK (TYPE-1)	1
1	17595-AAE-300S	STRIPE, R FUEL TANK (TYPE-2)	1
1	17595-AAE-300T	STRIPE, R FUEL TANK (TYPE-3)	1
1	17595-AAE-C50Z	STRIPE, R FUEL TANK (TYPE-1)	1
2	17596-AAE-300R	STRIPE, L FUEL TANK (TYPE-1)	1
2	17596-AAE-300S	STRIPE, L FUEL TANK (TYPE-2)	1
2	17596-AAE-300T	STRIPE, L FUEL TANK (TYPE-3)	1
2	17596-AAE-C50Z	STRIPE, L FUEL TANK (TYPE-1)	1
3	77238-AAE-300R	MARK, CENTER RR. COWL (TYPE-1)	1
4	83408-AAE-300R	STRIPE, R FR VISOR (TYPE-1)	1
4	83408-AAE-300S	STRIPE, R FR VISOR (TYPE-2)	1
4	83408-AAE-300T	STRIPE, R FR VISOR (TYPE-3)	1
5	83409-AAE-300R	STRIPE, L FR VISOR (TYPE-1)	1
5	83409-AAE-300S	STRIPE, L FR VISOR (TYPE-2)	1
5	83409-AAE-300T	STRIPE, L FR VISOR (TYPE-3)	1
7	86511-KVH-780	MARK, UTILITY BOX COVER (TYPE-1)	2
10	86838-AAE-300R	MARK HERO FR VISOR (TYPE-1)	1
10	86838-AAE-C50Z	MARK HERO FR VISOR (TYPE-1)	1
11	87115-AAE-300R	STRIPE, R SIDE COVER (TYPE-1)	1
11	87115-AAE-300S	STRIPE, R SIDE COVER (TYPE-2)	1
11	87115-AAE-300T	STRIPE, R SIDE COVER (TYPE-3)	1
11	87115-AAE-C50Z	STRIPE R SIDE COVER (TYPE-1)	1
12	87116-AAE-300R	STRIPE, L SIDE COVER (TYPE-1)	1
12	87116-AAE-300S	STRIPE, L SIDE COVER (TYPE-2)	1
12	87116-AAE-300T	STRIPE, L SIDE COVER (TYPE-3)	1
12	87116-AAE-C50Z	STRIPE L SIDE COVER (TYPE-1)	1
13	87131-AAE-300R	STRIPE, R SIDE COWL (TYPE-1)	1
13	87131-AAE-300S	STRIPE, R SIDE COWL (TYPE-2)	1
13	87131-AAE-300T	STRIPE, R SIDE COWL (TYPE-3)	1
13	87131-AAE-1000	STRIPE R SIDE COWL	1
14	87132-AAE-300R	STRIPE, L SIDE COWL (TYPE-1)	1
14	87132-AAE-300S	STRIPE, L SIDE COWL (TYPE-2)	1
14	87132-AAE-300T	STRIPE, L SIDE COWL (TYPE-3)	1
14	87132-AAE-1000	STRIPE L SIDE COWL	1
15	85401-AAW-A00	PROGRAMMED FI MARK	2
