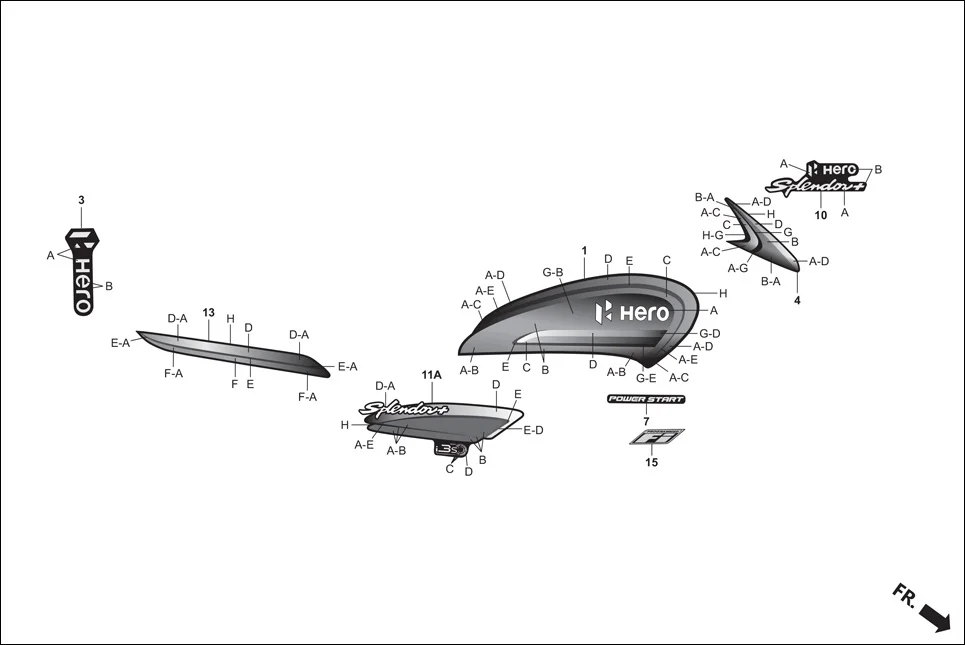

F-27-SELF-I3S - STRIPES/MARK

Hero Splendor Plus(Jan, 2023) · 35 parts

Parts in This Assembly (35)

Ref #	Part Number	Description	Qty
1	17595-AAE-300R	STRIPE, R FUEL TANK (TYPE-1)	1
1	17595-AAE-300S	STRIPE, R FUEL TANK (TYPE-2)	1
1	17595-AAE-300T	STRIPE, R FUEL TANK (TYPE-3)	1
1	17507-KCC-905ZM	STRIPE R FUEL TANK(BLK.M.B.) (TYPE 4)	1
2	17596-AAE-300R	STRIPE, L FUEL TANK (TYPE-1)	1
2	17596-AAE-300S	STRIPE, L FUEL TANK (TYPE-2)	1
2	17596-AAE-300T	STRIPE, L FUEL TANK (TYPE-3)	1
2	17508-KCC-905ZM	STRIPE L FUEL TANK(BLK.M.B.) (TYPE 4)	1
3	77238-AAE-300R	MARK, CENTER RR. COWL (TYPE-1)	1
4	83408-AAE-300R	STRIPE, R FR VISOR (TYPE-1)	1
4	83408-AAE-300S	STRIPE, R FR VISOR (TYPE-2)	1
4	83408-AAE-300T	STRIPE, R FR VISOR (TYPE-3)	1
5	83409-AAE-300R	STRIPE, L FR VISOR (TYPE-1)	1
5	83409-AAE-300S	STRIPE, L FR VISOR (TYPE-2)	1
5	83409-AAE-300T	STRIPE, L FR VISOR (TYPE-3)	1
7	86511-KVH-780	MARK, UTILITY BOX COVER (TYPE-1)	2
10	86838-AAE-300R	MARK HERO FR VISOR (TYPE-1)	1
11	87115-AAE-310R	STRIPE, R SIDE COVER (TYPE-1) I3S	1
11	87115-AAE-310S	STRIPE, R SIDE COVER (TYPE-2) I3S	1
11	87115-AAE-310T	STRIPE, R SIDE COVER (TYPE-3) I3S	1
11	87115-KCC-905ZM	STRIPE R.SIDE COVER.(BLK.M.B.) (TYPE-3)	1
12	87116-AAE-310R	STRIPE, L SIDE COVER (TYPE-1) I3S	1
12	87116-AAE-310S	STRIPE, L SIDE COVER (TYPE-2) I3S	1
12	87116-AAE-310T	STRIPE, L SIDE COVER (TYPE-3) I3S	1
12	87116-KCC-905ZM	STRIPE L.SIDE COVER (BLK.M.B.) (TYPE-3)	1
13	87131-AAE-300R	STRIPE, R SIDE COWL (TYPE-1)	1
13	87131-AAE-300S	STRIPE, R SIDE COWL (TYPE-2)	1
13	87131-AAE-300T	STRIPE, R SIDE COWL (TYPE-3)	1
13	87131-AAE-100	STRIPE, R SIDE COWL (TYPE-5)	1
14	87132-AAE-300R	STRIPE, L SIDE COWL (TYPE-1)	1
14	87132-AAE-300S	STRIPE, L SIDE COWL (TYPE-2)	1
14	87132-AAE-300T	STRIPE, L SIDE COWL (TYPE-3)	1
14	87132-AAE-100	STRIPE, L SIDE COWL (TYPE-5)	1
15	85401-AAW-A00	PROGRAMMED FI MARK	2
16	17506-AAE-3054	HERO MARK FUEL TANK	2
