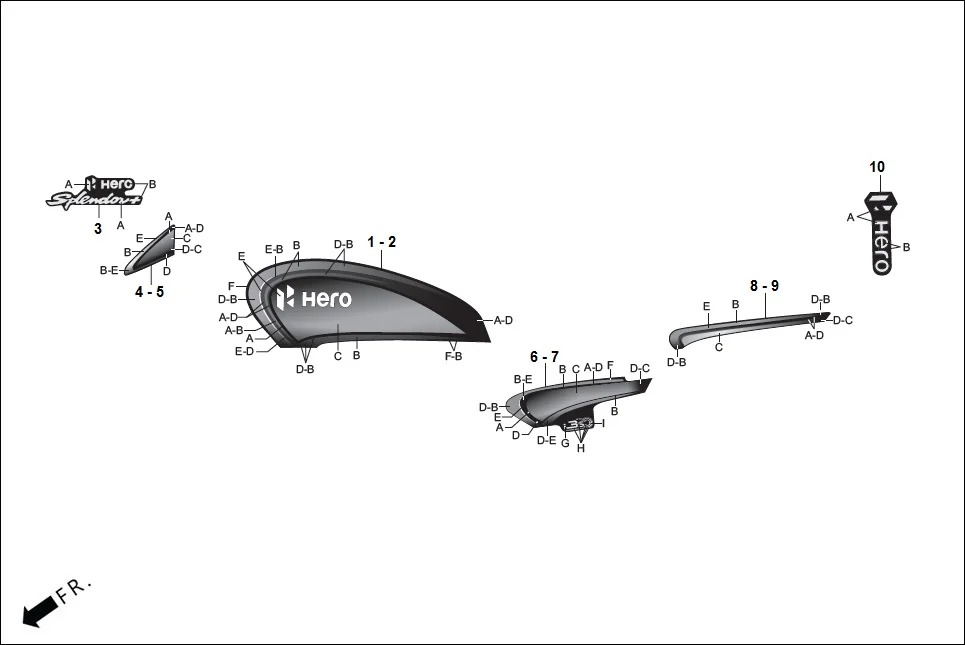

F-27-II-SELF-I3S - STRIPES/MARK
Hero Splendor Plus(Jan, 2023) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17595-AAE-C00B | STRIPE, R FUEL TANK (TYPE-4) | 1 | |
| 2 | 17596-AAE-C00B | STRIPE, L FUEL TANK (TYPE-4) | 1 | |
| 3 | 86838-AAE-300S | MARK HERO FR VISOR (TYPE-2) | 1 | |
| 4 | 83408-AAE-C00B | STRIPE R FR VISOR (TYPE-4) | 1 | |
| 5 | 83409-AAE-C00B | STRIPE L FR VISOR (TYPE-4) | 1 | |
| 6 | 87115-AAE-C10B | STRIPE R SIDE COVER (TYPE-5) | 1 | |
| 7 | 87116-AAE-C10B | STRIPE L SIDE COVER (TYPE-5) | 1 | |
| 8 | 87131-AAE-C00B | STRIPE R SIDE COWL (TYPE-4) | 1 | |
| 9 | 87132-AAE-C00B | STRIPE L SIDE COWL (TYPE-4) | 1 | |
| 10 | 77238-AAE-300S | MARK, CENTER RR. COWL (TYPE-2) | 1 | |
