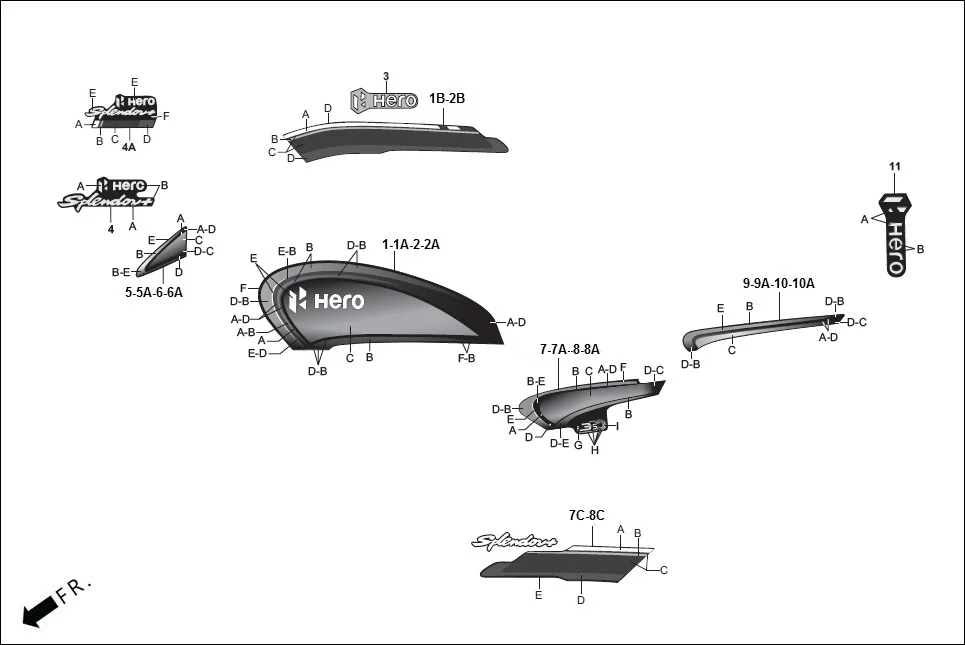

F-27-I-SELF - STRIPES/MARK

Hero Splendor Plus(Jan, 2023) · 36 parts

Parts in This Assembly (36)

Ref #	Part Number	Description	Qty
1	17595-AAE-C00V	STRIPE, R FUEL TANK (TYPE-1)	1
1	17595-AAE-C00W	STRIPE, R FUEL TANK (TYPE-2)	1
1	17595-AAE-C00X	STRIPE, R FUEL TANK (TYPE-3)	1
1	17595-AAE-C00Y	STRIPE, R FUEL TANK (TYPE-4)	1
2	17596-AAE-C00V	STRIPE, L FUEL TANK (TYPE-1)	1
2	17596-AAE-C00W	STRIPE, L FUEL TANK (TYPE-2)	1
2	17596-AAE-C00X	STRIPE, L FUEL TANK (TYPE-3)	1
2	17596-AAE-C00Y	STRIPE, L FUEL TANK (TYPE-4)	1
3	86833-AAE-B00	EMBLEM, FUEL TANK	2
4	86838-AAE-300R	MARK HERO FR VISOR (TYPE-1)	1
4	86838-AAE-300T	MARK HERO FR VISOR (TYPE-3)	1
5	83408-AAE-C00V	STRIPE R FR VISOR (TYPE-1)	1
5	83408-AAE-C00W	STRIPE R FR VISOR (TYPE-2)	1
5	83408-AAE-C00X	STRIPE R FR VISOR (TYPE-3)	1
5	83408-AAE-C00Y	STRIPE R FR VISOR (TYPE-4)	1
6	83409-AAE-C00V	STRIPE L FR VISOR (TYPE-1)	1
6	83409-AAE-C00W	STRIPE L FR VISOR (TYPE-2)	1
6	83409-AAE-C00X	STRIPE L FR VISOR (TYPE-3)	1
6	83409-AAE-C00Y	STRIPE L FR VISOR (TYPE-4)	1
7	87115-AAE-C00V	STRIPE R SIDE COVER (TYPE-1)	1
7	87115-AAE-C00W	STRIPE R SIDE COVER (TYPE-2)	1
7	87115-AAE-C00X	STRIPE R SIDE COVER (TYPE-3)	1
7	87115-AAE-C00Y	STRIPE R SIDE COVER (TYPE-4)	1
8	87116-AAE-C00V	STRIPE L SIDE COVER (TYPE-1)	1
8	87116-AAE-C00W	STRIPE L SIDE COVER (TYPE-2)	1
8	87116-AAE-C00X	STRIPE L SIDE COVER (TYPE-3)	1
8	87116-AAE-C00Y	STRIPE L SIDE COVER (TYPE-4)	1
9	87131-AAE-C00V	STRIPE R SIDE COWL (TYPE-1)	1
9	87131-AAE-C00W	STRIPE R SIDE COWL (TYPE-2)	1
9	87131-AAE-C00X	STRIPE R SIDE COWL (TYPE-3)	1
9	87131-AAE-C00Y	STRIPE R SIDE COWL (TYPE-4)	1
10	87132-AAE-C00V	STRIPE L SIDE COWL (TYPE-1)	1
10	87132-AAE-C00W	STRIPE L SIDE COWL (TYPE-2)	1
10	87132-AAE-C00X	STRIPE L SIDE COWL (TYPE-3)	1
10	87132-AAE-C00Y	STRIPE L SIDE COWL (TYPE-4)	1
11	77238-AAE-300T	MARK, CENTER RR. COWL (TYPE-3)	1
