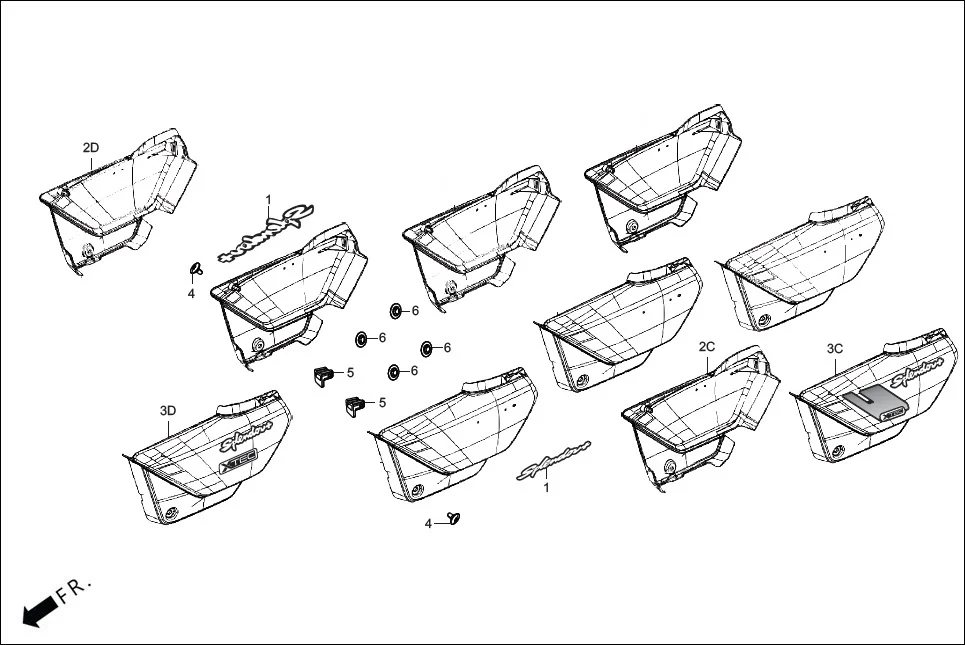

F-14A-TECHNO - SIDE COVER
Hero Splendor Plus(Jan, 2023) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 87117-AAE-100 | EMBLEM, SIDE COVER | 2 | |
| 2 | 83500-AAE-B00R | SET, ‘R’ SIDE COVER (BLACK NH-1) TYPE-1 | 1 | |
| 2 | 83500-AAE-B00S | SET, ‘R’ SIDE COVER (BLACK NH-1) TYPE-2 | 1 | |
| 2 | 83500-AAE-B00T | SET, ‘R’ SIDE COVER (PEARL FADELESS WHITE) | 1 | |
| 2 | 83500-AAE-B00A | SET, ‘R’ SIDE COVER (BLACK NH-1) TYPE-8 | 1 | |
| 2 | 83500-AAE-B10U | SET, ‘R’ SIDE COVER (BLACK NH-1) TYPE-3 | 1 | |
| 3 | 83600-AAE-B00R | SET, ‘L’ SIDE COVER (BLACK NH-1) TYPE-1 | 1 | |
| 3 | 83600-AAE-B00S | SET, ‘L’ SIDE COVER (BLACK NH-1) TYPE-2 | 1 | |
| 3 | 83600-AAE-B00T | SET, ‘L’ SIDE COVER (PEARL FADELESS WHITE) | 1 | |
| 3 | 83600-AAE-B00A | SET, ‘L’ SIDE COVER (BLACK NH-1) TYPE-8 | 1 | |
| 3 | 83600-AAE-B10U | SET, ‘L’ SIDE COVER (BLACK NH-1) TYPE-3 | 1 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 2 | |
| 5 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 6 | 90313-172-000 | NUT, SPEED ,4MM | 4 | |
