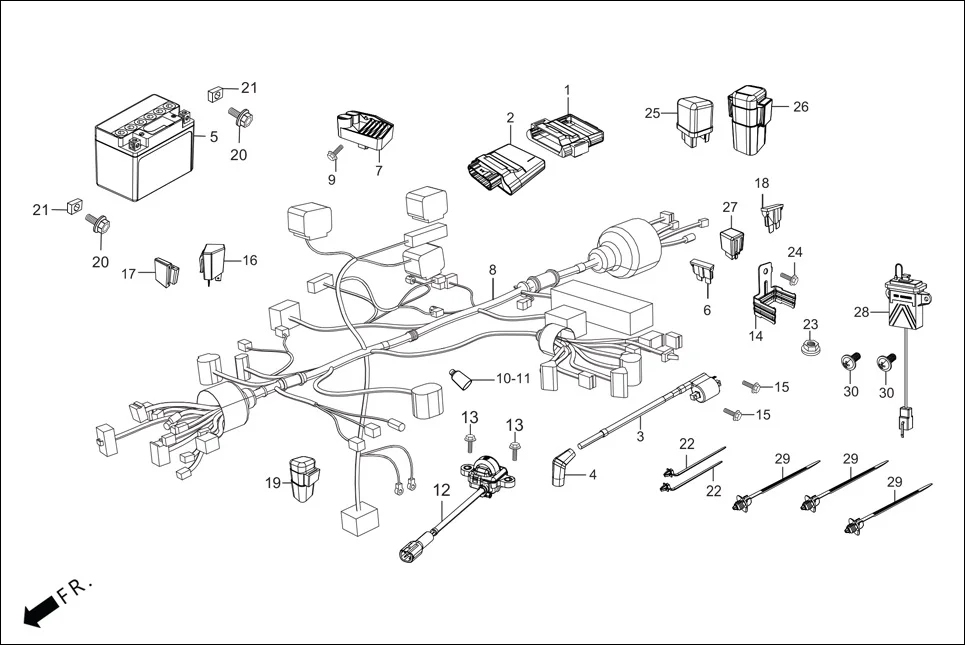

F-24-SELF-WIRE HARNESS/BATTERY
HeroSplendor+ iBS BSVI(Dec,2021) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 38771-AAE-300 | CUSHION. PGM-FI/IGN UNIT | 1 | |
| 2 | 38770-AAE-K41 | UNIT COMP. ECU (SELF, KICK) | 1 | |
| 3 | 30510-AAE-30099 | COIL ASSY., IGNITION | 1 | |
| 4 | 30700-AAE-30099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 6 | 98200-31500 | BLADE, FUSE, 15A | 1 | |
| 7 | 31600-ACK-001 | REG. REC. COMP. | 1 | |
| 8 | 32100-ADH-240 | WIRE, HARNESS (SELF) | 1 | |
| 9 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 10 | 32108-KE8-000 | COVER ,CONNECTOR | 1 | |
| 12 | 35160-AAE-31099 | SENSOR ASSY BANK ANGLE | 1 | |
| 13 | 90002-KRM-840 | BOLT, FLANGE 5X14 | 2 | |
| 14 | 50150-AAH-810 | STAY, ST/RELAY | 1 | |
| 15 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 16 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 17 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 18 | 98200-31000 | BLADE, FUSE 10A | 1 | |
| 19 | 38506-KWA-840 | SUSP. START RELAY | 1 | |
| 20 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 21 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 22 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 23 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 24 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 25 | 38501-AAE-30099 | RELAY COMP START | 1 | |
| 28 | 31300-AAJ-B0099 | USB CHARGER ASSY | 1 | |
| 29 | 37702-ABS-301 | CLIP SPEED SENSOR | 3 | |
| 30 | 93891-04010-07 | SCREW WASH 4X10 | 2 |
