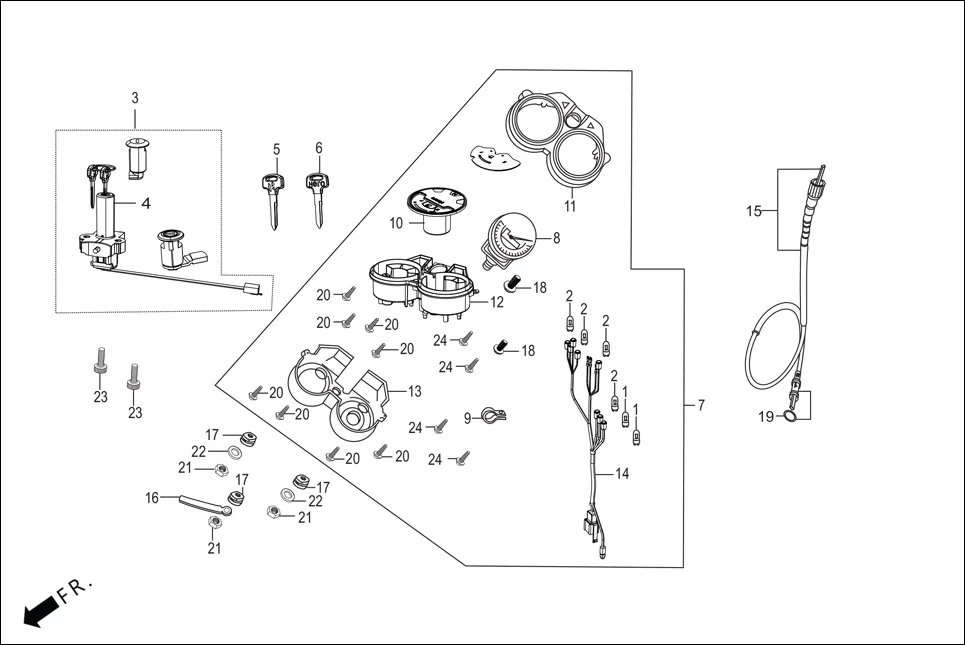

F-2 - SPEEDOMETER/CABLE/KEY SET
Hero Splendor+ iBS BSVI(Dec,2021) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34913-ACK-02099 | LED BULB RED WEDGE BASE | 2 | |
| 1 | 34914-ACK-02099 | LED BULB WARM WHITE WEDGE BASE | 2 | |
| 2 | 34910-KWA-930 | BULB WEDGE BASE (T10 12V, 1.7W) | 4 | |
| 2 | 34920-AAG-300 | BULB WEDGE BASE (T10 12V 3W) | 4 | |
| 3 | 35010-AAE-301 | KEY SET | 1 | |
| 4 | 35100-AAE-301 | SWITCH ASSY., COMB.& LOCK | 1 | |
| 5 | 35121-AAE-H00 | KEY BLANK NO 1 | 1 | |
| 6 | 35122-AAE-H00 | KEY BLANK NO 2 | 1 | |
| 7 | 37100-AAE-30099 | METER ASSY., COMP. (KICK, SELF) | 1 | |
| 8 | 37210-AAE-30099 | SPEEDOMETER COMP., (KICK, SELF) | 1 | |
| 9 | 37215-MB6-830 | CLAMP | 1 | |
| 10 | 37300-AAE-102 | FUEL METER COMP | 1 | |
| 11 | 37610-KCC-900 | CASE UPPER ASSY. | 1 | |
| 12 | 37612-AAH-811 | CASE UNDER ASSY (PRICOL) | 1 | |
| 12 | 37612-AAH-A12 | CASE UNDER ASSY | 1 | |
| 13 | 37614-KCC-900 | COVER, UNDER CASE | 1 | |
| 14 | 37619-AAE-30099 | SOCKET COMP. (KICK OR SELF) | 1 | |
| 15 | 44830-AAD-000 | CABLE COMP SPDMT. | 1 | |
| 16 | 61317-KCC-900 | GUIDE `A | 1 | |
| 17 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 18 | 90035-KST-900 | SCREW,WASH,4 X 8 | 2 | |
| 19 | 91352-GAZ-930 | O-RING 8.5X11.5 | 1 | |
| 20 | 93913-25280 | SCREW TAPPING 5 X 12 | 8 | |
| 21 | 94001-06070-0S | NUT, HEX., 6 MM | 3 | |
| 22 | 94103-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 23 | 96700-08020-00 | BOLT SOCKET, 8 MM | 2 | |
| 24 | 90108-KWH-961 | SCREW, WASH, 3X22 | 3 | |
