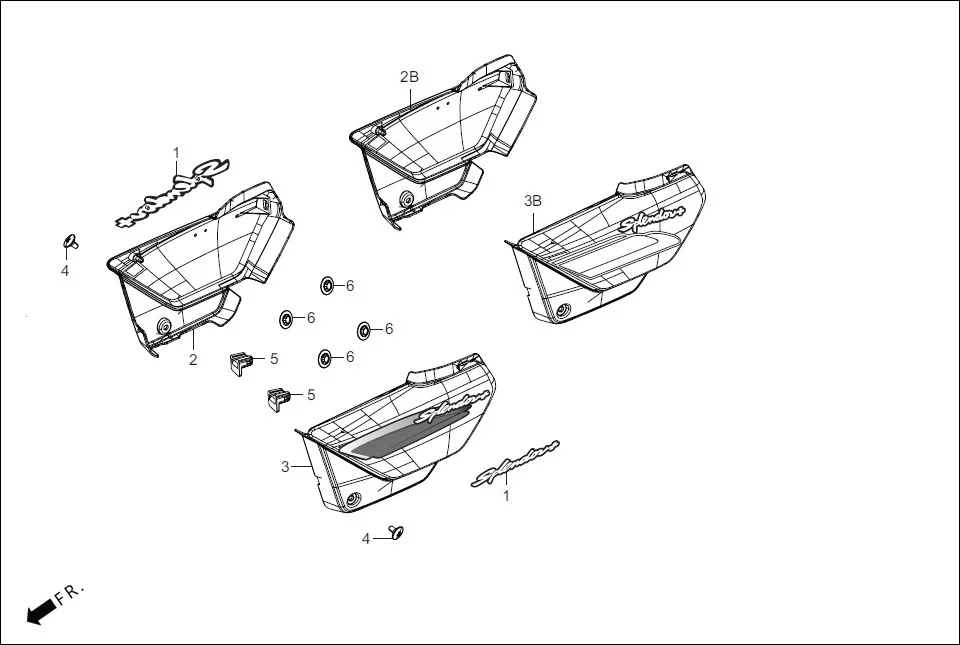

F-14 - SIDE COVER
Hero Splendor+ iBS BSVI(Dec,2021) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 87117-AAE-100 | EMBLEM, SIDE COVER | 2 | |
| 2 | 83500-AAE-300R | SET, RSIDE COVER (BLACK NH-1) TYPE-1 | 1 | |
| 2 | 83500-AAE-300S | SET, RSIDE COVER (BLACK NH-1) TYPE-2 | 1 | |
| 2 | 83500-AAE-300T | SET, RSIDE COVER (BLACK NH-1) TYPE-3 | 1 | |
| 2 | 83500-AAE-300U | SET, RSIDE COVER (EBONY GRAY ME.) | 1 | |
| 2 | 83500-AAE-2054 | SET, RSIDE COVER (BLACK NH-1) TYPE-4 | 1 | |
| 3 | 83600-AAE-300R | SET, LSIDE COVER (BLACK NH-1) TYPE-1 | 1 | |
| 3 | 83600-AAE-300S | SET, LSIDE COVER (BLACK NH-1) TYPE-2 | 1 | |
| 3 | 83600-AAE-300T | SET, LSIDE COVER (BLACK NH-1) TYPE-3 | 1 | |
| 3 | 83600-AAE-300U | SET, LSIDE COVER (EBONY GRAY ME.) | 1 | |
| 3 | 83600-AAE-1054 | SET L SIDE COVER | 1 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 2 | |
| 5 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 6 | 90313-172-000 | NUT, SPEED ,4MM | 4 | |
