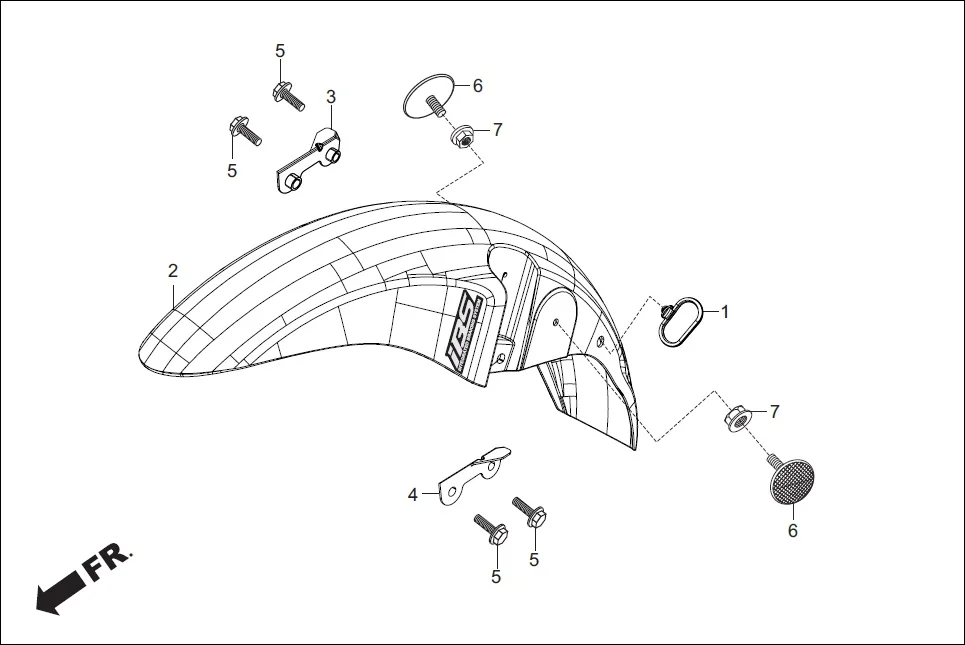

F-6-FENDER FRONT
HeroSplendor+ iBS (Jan, 2019) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-KCC-900 | GUIDE, FR. FENDER CABLE | 1 | |
| 2 | 61000-AAE-200R | FENDER COMP., FRONT (BLACK) (NH-1) | 1 | |
| 2 | 61000-AAE-200U | FENDER COMP., FRONT (CANDY BLAZING RED) | 1 | |
| 2 | 61000-AAE-200V | FENDER COMP., FRONT (CLOUD SILVER ME.) | 1 | |
| 2 | 61000-AAE-200W | FENDER COMP., FRONT (HEAVY GRAY ME.) | 1 | |
| 3 | 61103-KST-940 | COLLER, FR. FENDER R | 1 | |
| 4 | 61104-KST-940 | COLLER, FR. FENDER L | 1 | |
| 5 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 6 | 33741-KAK-971 | REFLEX, LEFT FRONT | 2 | |
| 7 | 94050-06000 | NUT, FLANGE, 6 MM | 2 |
