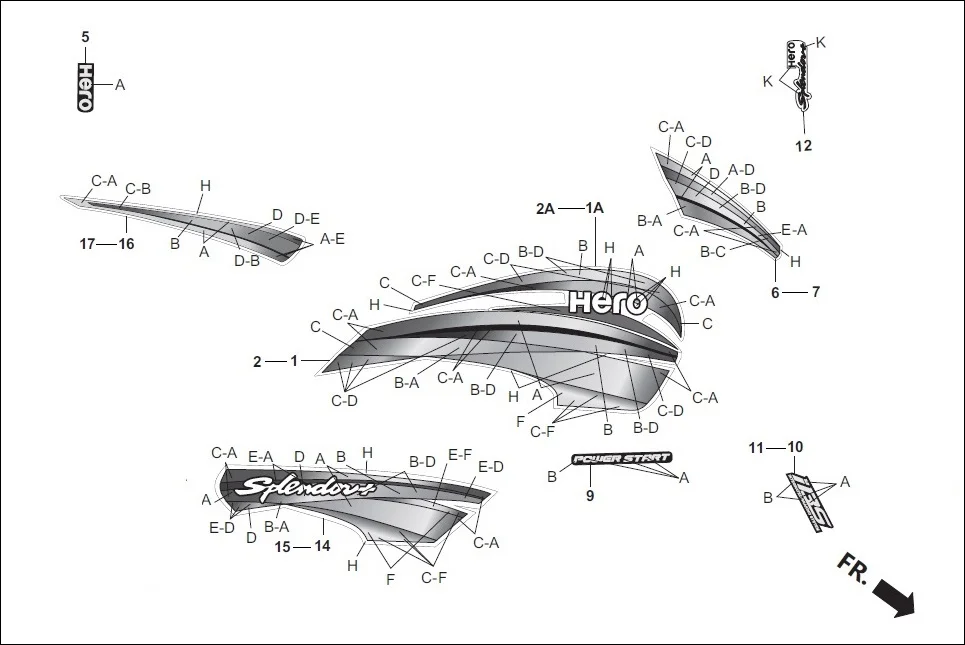

F-27-SELF - STRIPES/MARK
Hero Splendor+ iBS (Jan, 2019) · 59 parts
Parts in This Assembly (59)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17507-AAE-200R | STRIPE, R FUEL TANK (TYPE-1) | 1 | |
| 1 | 17507-AAE-200S | STRIPE, R FUEL TANK (TYPE-2) | 1 | |
| 1 | 17507-AAE-200U | STRIPE, R FUEL TANK (TYPE-3) | 1 | |
| 1 | 17507-AAE-200V | STRIPE, R FUEL TANK (TYPE-4) | 1 | |
| 1 | 17507-AAE-200W | STRIPE, R FUEL TANK (TYPE-5) | 1 | |
| 1 | 17607-AAE-200R | STRIPE, B R FUEL TANK (TYPE-1) | 1 | |
| 1 | 17607-AAE-200U | STRIPE, B R FUEL TANK (TYPE-3) | 1 | |
| 1 | 17607-AAE-200V | STRIPE, B R FUEL TANK (TYPE-4) | 1 | |
| 1 | 17607-AAE-200W | STRIPE, B R FUEL TANK (TYPE-5) | 1 | |
| 2 | 17508-AAE-200R | STRIPE, L FUEL TANK (TYPE-1) | 1 | |
| 2 | 17508-AAE-200S | STRIPE, L FUEL TANK (TYPE-2) | 1 | |
| 2 | 17508-AAE-200U | STRIPE, L FUEL TANK (TYPE-3) | 1 | |
| 2 | 17508-AAE-200V | STRIPE, L FUEL TANK (TYPE-4) | 1 | |
| 2 | 17508-AAE-200W | STRIPE, L FUEL TANK (TYPE-5) | 1 | |
| 2 | 17608-AAE-200R | STRIPE, B L FUEL TANK (TYPE-1) | 1 | |
| 2 | 17608-AAE-200U | STRIPE, B L FUEL TANK (TYPE-3) | 1 | |
| 2 | 17608-AAE-200V | STRIPE, B L FUEL TANK (TYPE-4) | 1 | |
| 2 | 17608-AAE-200W | STRIPE, B L FUEL TANK (TYPE-5) | 1 | |
| 5 | 77238-AAD-H70ZA | MARK CENTER RR COWL(TYPE-1) | 1 | |
| 5 | 77238-AAD-H70ZB | MARK CENTER RR COWL(TYPE-2) | 1 | |
| 6 | 83408-AAE-200R | STRIPE, R FR VISOR (TYPE-1) | 1 | |
| 6 | 83408-AAE-200S | STRIPE, R FR VISOR (TYPE-2) | 1 | |
| 6 | 83408-AAE-200U | STRIPE, R FR VISOR (TYPE-3) | 1 | |
| 6 | 83408-AAE-200V | STRIPE, R FR VISOR (TYPE-4) | 1 | |
| 6 | 83408-AAE-200W | STRIPE, R FR VISOR (TYPE-5) | 1 | |
| 7 | 83409-AAE-200R | STRIPE, L FR VISOR (TYPE-1) | 1 | |
| 7 | 83409-AAE-200S | STRIPE, L FR VISOR (TYPE-2) | 1 | |
| 7 | 83409-AAE-200U | STRIPE, L FR VISOR (TYPE-3) | 1 | |
| 7 | 83409-AAE-200V | STRIPE, L FR VISOR (TYPE-4) | 1 | |
| 7 | 83409-AAE-200W | STRIPE, L FR VISOR (TYPE-5) | 1 | |
| 9 | 86511-KVH-780 | MARK, UTILITY BOX COVER (TYPE-1) | 1 | |
| 10 | 86780-AAE-200R | MARK, IBS FR FENDER RH (TYPE-1) | 1 | |
| 10 | 86780-AAE-200S | MARK, IBS FR FENDER RH (TYPE-2) | 1 | |
| 10 | 86780-AAE-200T | MARK, IBS FR FENDER RH (TYPE-3) | 1 | |
| 11 | 86880-AAE-200R | MARK, IBS FR FENDER LH (TYPE-1) | 1 | |
| 11 | 86880-AAE-200S | MARK, IBS FR FENDER LH (TYPE-2) | 1 | |
| 11 | 86880-AAE-200T | MARK, IBS FR FENDER LH (TYPE-3) | 1 | |
| 12 | 86838-AAE-H00ZA | MARK FR VISOR(TYPE -1) | 1 | |
| 12 | 86838-AAE-H00ZB | MARK FR VISOR(TYPE -2) | 1 | |
| 14 | 87115-AAE-200R | STRIPE, R SIDE COVER (TYPE-1) | 1 | |
| 14 | 87115-AAE-200S | STRIPE, R SIDE COVER (TYPE-2) | 1 | |
| 14 | 87115-AAE-200U | STRIPE, R SIDE COVER (TYPE-3) | 1 | |
| 14 | 87115-AAE-200V | STRIPE, R SIDE COVER (TYPE-4) | 1 | |
| 14 | 87115-AAE-200W | STRIPE, R SIDE COVER (TYPE-5) | 1 | |
| 15 | 87116-AAE-200R | STRIPE, L SIDE COVER (TYPE-1) | 1 | |
| 15 | 87116-AAE-200S | STRIPE, L SIDE COVER (TYPE-2) | 1 | |
| 15 | 87116-AAE-200U | STRIPE, L SIDE COVER (TYPE-3) | 1 | |
| 15 | 87116-AAE-200V | STRIPE, L SIDE COVER (TYPE-4) | 1 | |
| 15 | 87116-AAE-200W | STRIPE, L SIDE COVER (TYPE-5) | 1 | |
| 16 | 87121-AAE-200R | STRIPE, R SIDE COWL (TYPE-1) | 1 | |
| 16 | 87121-AAE-200S | STRIPE, R SIDE COWL (TYPE-2) | 1 | |
| 16 | 87121-AAE-200U | STRIPE, R SIDE COWL (TYPE-3) | 1 | |
| 16 | 87121-AAE-200V | STRIPE, R SIDE COWL (TYPE-4) | 1 | |
| 16 | 87121-AAE-200W | STRIPE, R SIDE COWL (TYPE-5) | 1 | |
| 17 | 87122-AAE-200R | STRIPE, L SIDE COWL (TYPE-1) | 1 | |
| 17 | 87122-AAE-200S | STRIPE, L SIDE COWL (TYPE-2) | 1 | |
| 17 | 87122-AAE-200U | STRIPE, L SIDE COWL (TYPE-3) | 1 | |
| 17 | 87122-AAE-200V | STRIPE, L SIDE COWL (TYPE-4) | 1 | |
| 17 | 87122-AAE-200W | STRIPE, L SIDE COWL (TYPE-5) | 1 | |
