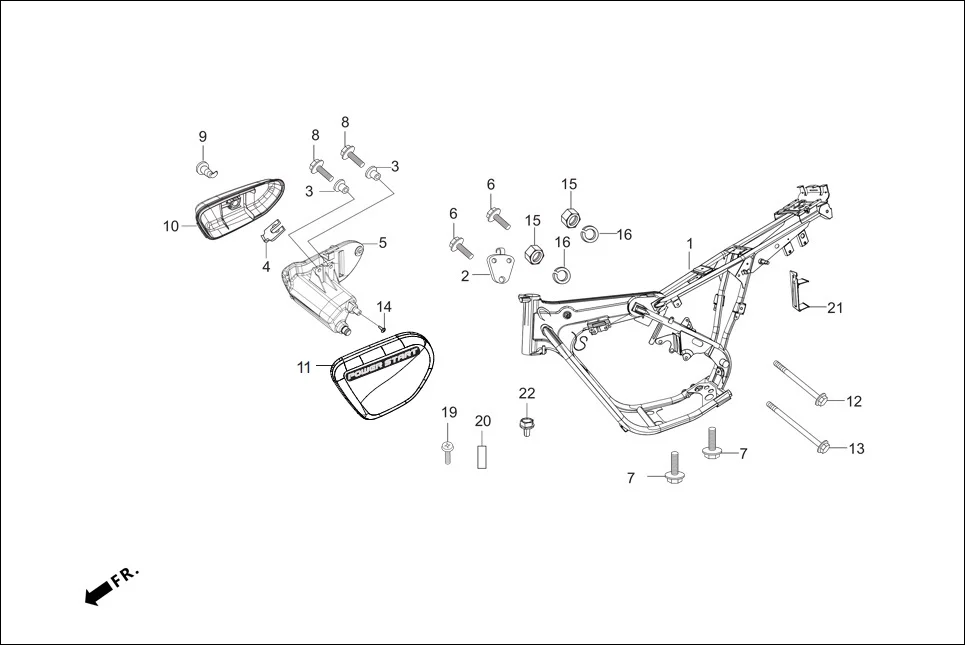

F-25-SELF - FRAME BODY/UTILITY BOX
Hero Splendor+ iBS (Jan, 2019) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-AAE-240 | FRAME BODY COMP., (SELF) | 1 | |
| 2 | 50211-KCC-900 | PLATE, ENGINE HANGER | 1 | |
| 3 | 61107-KK6-000 | WASHER, 6MM | 2 | |
| 4 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 5 | 83510-AAE-100 | UTILITY BOX COMP | 1 | |
| 6 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 2 | |
| 7 | 90121-AAD-500 | BOLT FLANGE 8 X 16 | 2 | |
| 8 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 9 | 83550-AAA-001 | LOCK, SIDE COVER | 1 | |
| 10 | 83700-AAE-110 | SET R UTILITY BOX COVER | 1 | |
| 10 | 83700-AAE-210 | SET, R, UTILITY BOX COVER | 1 | |
| 11 | 83800-AAE-110 | SET L UTILITY BOX COVER | 1 | |
| 12 | 90116-KCC-900 | BOLT FLANGE, 8 X 97 | 1 | |
| 13 | 90117-KCC-900 | BOLT, FLANGE, 8 X 110 | 1 | |
| 14 | 93913-25280 | SCREW TAPPING 5 X 12 | 1 | |
| 15 | 94050-08000 | NUT, FLANGE, 8MM | 2 | |
| 16 | 94111-08000 | WASHER, SPRING, 8MM | 2 | |
| 20 | 50170-AAH-F00 | GUIDE CBS CABLE | 1 | |
| 21 | 50222-AAH-F00 | BRKT I3S SUPPORT | 1 | |
| 22 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
