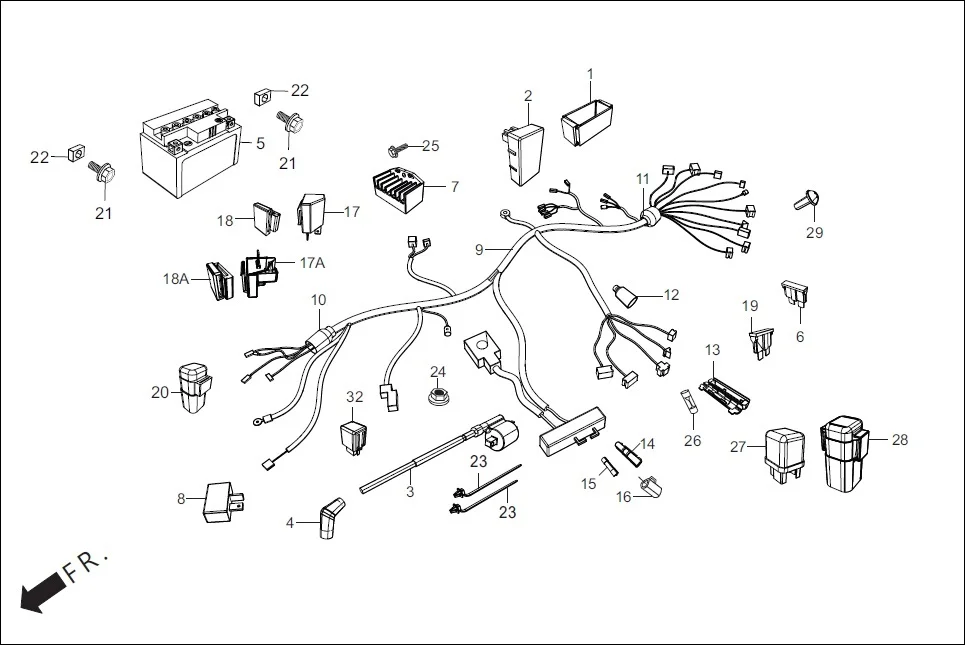

F-24-SELF - WIRE HARNESS/BATTERY
Hero Splendor+ iBS (Jan, 2019) · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KWH-961 | CUSHION CDI UNIT | 1 | |
| 2 | 30410-AAE-241 | UNIT COMP DIGITAL DC-CDI | 1 | |
| 3 | 30500-AAE-10099 | COIL ASSY IGN | 1 | |
| 4 | 30700-AAE-30099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 6 | 98200-31500 | BLADE, FUSE, 15A | 1 | |
| 7 | 31600-KWF-841 | REG RECT.COMP | 1 | |
| 8 | 31700-124-000 | RECTIFIER ASSY., SILICON | 1 | |
| 9 | 32100-AAE-240 | WIRE, HARNESS (I3S) | 1 | |
| 10 | 32108-344-820 | COVER, CONNECTOR | 1 | |
| 11 | 32108-GW6-700 | COVER ,CONNECTOR | 1 | |
| 12 | 32108-KE8-000 | COVER ,CONNECTOR | 1 | |
| 13 | 32121-196-000 | CASE FUSE CONNECTOR | 1 | |
| 14 | 32126-463-770 | CASE,10 A FUSE | 1 | |
| 15 | 98200-11000 | FUSE, A10 | 1 | |
| 16 | 38201-KTC-900 | HOLDE, FUSE | 1 | |
| 17 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 18 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 18 | 38306-AAH-A01 | SUSP. WINKER RELAY | 1 | |
| 19 | 98200-31000 | BLADE, FUSE 10A | 1 | |
| 20 | 38506-KWA-840 | SUSP. START RELAY | 1 | |
| 21 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 22 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 23 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 24 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 25 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 26 | 98200-10700 | FUSE (7A) | 1 | |
| 27 | 38501-AAE-30099 | RELAY COMP START | 1 | |
| 28 | 38506-AAH-A01 | SUSP. START RELAY | 1 | |
| 29 | 93891-05014-18 | SCREW, WASHER, 5 X 14 | 1 | |
| 32 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
