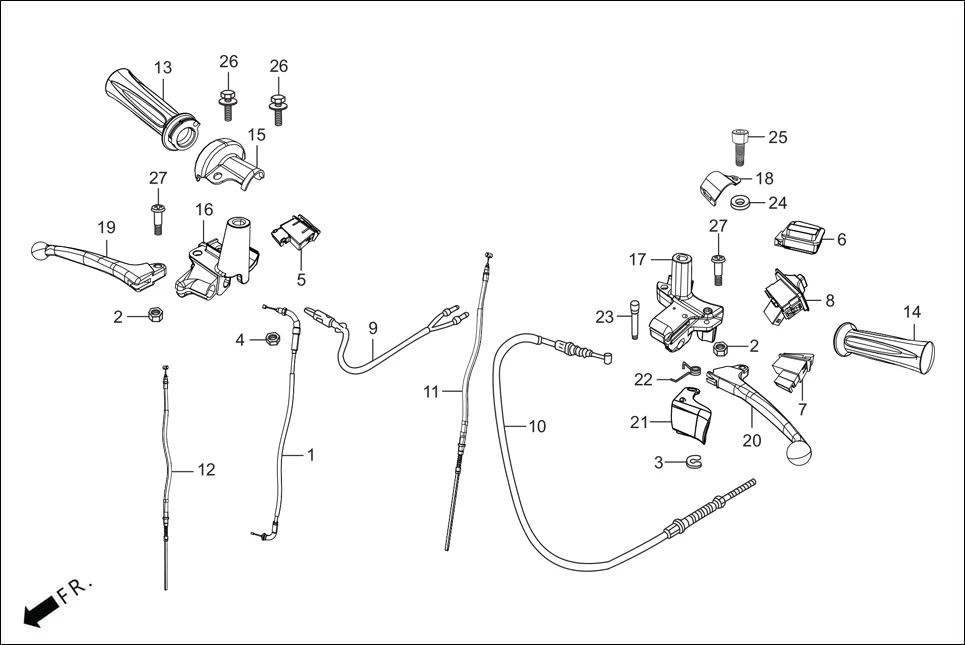

F-3 - HANDLE LEVER/SWITCH/CABLE
Hero PLEASURE PLUS 110 BSVI OBD2 (Apr,2025) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ADE-10099 | CABLE COMP. THROTTLE | 1 | |
| 2 | 90304-KPL-900 | NUT HEX 5 MM | 2 | |
| 3 | 30158-GW3-980 | RING E TYPE 3MM | 1 | |
| 5 | 35160-AAL-901 | SWITCH, UNIT START | 1 | |
| 6 | 35170-KTP-890 | SW UNIT DIMMER | 1 | |
| 7 | 35180-KTP-890 | SWITCH, UNIT HORN | 1 | |
| 8 | 35200-ABH-501 | SWITCH, UNIT WINKER | 1 | |
| 9 | 35340-KTP-890 | SWITCH ASSY., FR. STOP | 1 | |
| 10 | 43450-AAW-000 | CABLE COMP, RR BRAKE | 1 | |
| 11 | 45440-ADE-200 | CABLE COMP LH FR BRK. | 1 | |
| 12 | 45450-ADE-200 | CABLE COMP RH FR BRK. | 1 | |
| 13 | 53140-ADE-100 | GRIP COMP., THROT. | 1 | |
| 14 | 53166-KTP-900 | GRIP L HANDLE | 1 | |
| 15 | 53167-ABG-000 | HOUSING, UPP., THROT | 1 | |
| 16 | 53168-ADE-100 | HOUSING UNDER THROTTLE. | 1 | |
| 17 | 53172-AAL-100 | BRKT HANDLE | 1 | |
| 18 | 53173-KPL-900 | BAND, HANDLE BRKT | 1 | |
| 19 | 53175-KTP-900 | LEVER, R. STRG. HANDLE | 1 | |
| 20 | 53178-AAL-100 | LEVER L HANDLE | 1 | |
| 21 | 53181-AAL-100 | LEVER COMP PARKING | 1 | |
| 22 | 53182-AAL-100 | SPRING RETURN LEVER | 1 | |
| 23 | 53183-GW3-980 | PIN, PIVOT, PARKING LEVER | 1 | |
| 24 | 94101-06000 | WASHER, PLAIN, 6 MM | 1 | |
| 25 | 96700-06020-07 | BOLT, SOCKET, 6 X 20 | 1 | |
| 26 | 93401-06020-00 | BOLT, WASHER, 6 X 20 | 2 | |
| 27 | 90115-KPL-900 | SCREW, HNDL LEVER PIVOT | 2 | |
