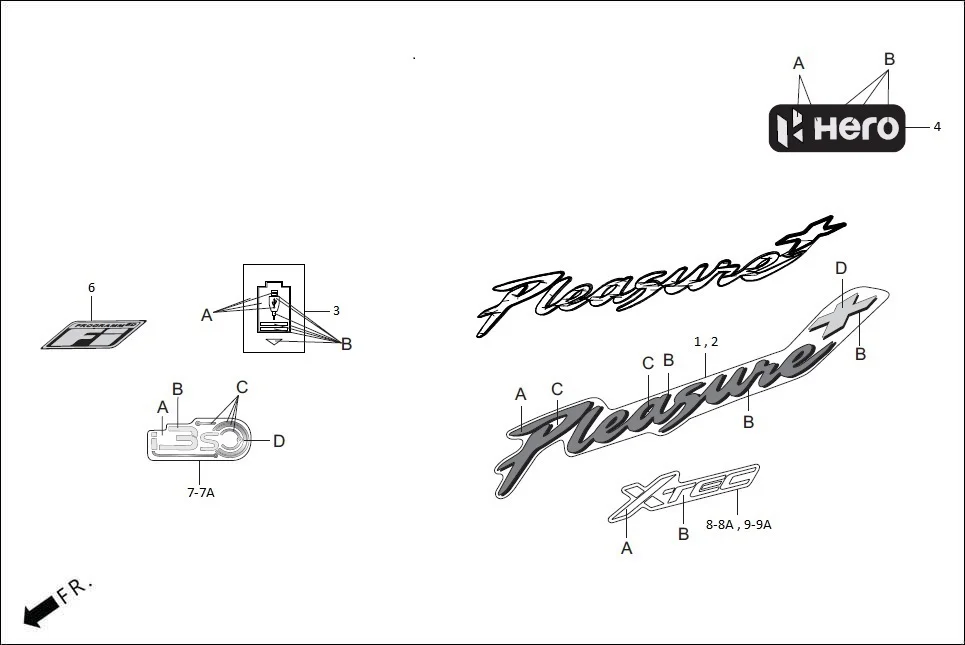

F-26-VX - MARK/STRIPE
Hero PLEASURE PLUS 110 BSVI OBD2 (Apr,2025) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86353-AAL-500S | STRIPE R BODY COVER (TYPE-2) | 1 | |
| 1 | 86353-AAL-500V | STRIPE R BODY COVER (TYPE-5) | 1 | |
| 1 | 86353-AAL-500U | STRIPE R BODY COVER (TYPE-4) | 1 | |
| 1 | 86353-ADE-300T | STRIPE R BODY COVER (TYPE-1) | 1 | |
| 2 | 86354-AAL-500S | STRIPE L BODY COVER (TYPE-2) | 1 | |
| 2 | 86354-AAL-500V | STRIPE L BODY COVER (TYPE-5) | 1 | |
| 2 | 86354-AAL-500U | STRIPE L BODY COVER (TYPE-4) | 1 | |
| 2 | 86354-ADE-300T | STRIPE L BODY COVER (TYPE-1) | 1 | |
| 3 | 86375-AAL-500R | MARK RACK INNER (TYPE-1) | 1 | |
| 4 | 86355-AAL-500R | MARK HERO COVER RR CENTER (TYPE-1) | 1 | |
| 6 | 85405-ACV-500 | PROGRAMMED FI DOMING R | 1 | |
| 7 | 86216-AAL-E20S | MARK I3S FR UPPER COVER (TYPE-2) | 1 | |
| 7 | 86216-AAL-E20R | MARK I3S FR UPPER COVER (TYPE-1) | 1 | |
| 7 | 86216-AAL-C00R | MARK I3S FR UPPER COVER (TYPE-1) | 1 | |
| 8 | 86881-AAL-E20S | XTEC MARK R BODY COVER | 1 | |
| 8 | 86881-AAL-E20R | XTEC MARK R BODY COVER | 1 | |
| 8 | 86881-AAL-C00R | XTEC MARK R BODY COVER (TYPE-1) | 1 | |
| 9 | 86882-AAL-E20S | XTEC MARK L BODY COVER | 1 | |
| 9 | 86882-AAL-E20R | XTEC MARK L BODY COVER | 1 | |
| 9 | 86882-AAL-C00R | XTEC MARK L BODY COVER (TYPE-1) | 1 | |
