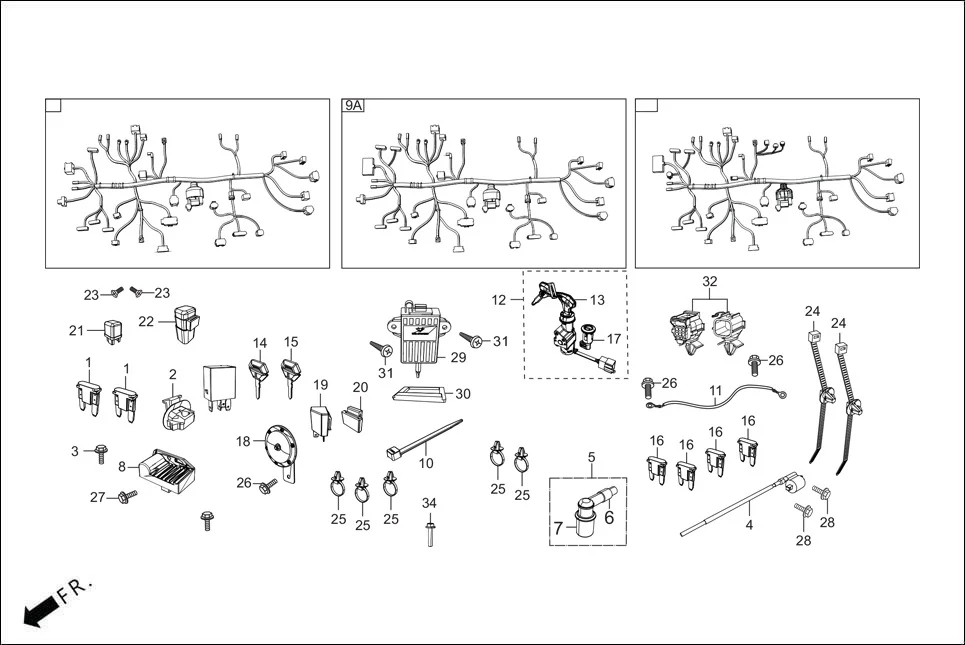

F-22-VX - WIRE HARNESS
Hero PLEASURE PLUS 110 BSVI OBD2 (Apr,2025) · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 2 | 91541-HMC-200 | CLIP FUSE BOX | 1 | |
| 4 | 30510-AAL-901 | COIL COMP., IGN. | 1 | |
| 4 | 30510-AAL-902 | COIL COMP. IGNITION | 1 | |
| 5 | 30700-KTP-951 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 5 | 30700-AAW-001 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 6 | 30604-KTP-890 | CAP, CORD WATER PROOF. | 1 | |
| 7 | 30605-KTP-951 | SEAL, H/T TERMINAL | 1 | |
| 9 | 32100-ADE-210 | HARNESS WIRE | 1 | |
| 10 | 91551-AAB-100 | BAND, CLAMP | 1 | |
| 11 | 32603-KPL-780 | CABLE, ENG-FRM. EARTH | 1 | |
| 12 | 35010-AAL-601 | KEY SET | 1 | |
| 13 | 35100-ABH-001 | SW. ASSY. COMB. & LOCK | 1 | |
| 13 | 35100-ABG-001 | SW. ASSY. COMB. & LOCK | 1 | |
| 14 | 35121-AAL-501 | KEY, BLANK NO. 1 | 1 | |
| 15 | 35122-AAL-501 | KEY, BLANK NO. 2 | 1 | |
| 16 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 17 | 77239-ABG-001 | KEY SEAT LOCK | 1 | |
| 18 | 38110-AAW-D01 | HORN COMP | 1 | |
| 19 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 20 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 20 | 38306-AAH-A01 | SUSP. WINKER RELAY | 1 | |
| 21 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 22 | 38506-AAW-301 | SUSP. START RELAY | 1 | |
| 23 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 24 | 90662-HMC-901 | HARNESS, BAND | 3 | |
| 25 | 91541-ABG-000 | CLIP BAND | 5 | |
| 26 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 27 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 3 | |
| 28 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 29 | 31300-AAT-001 | USB CHARGER ASSY | 1 | |
| 30 | 31301-AAW-001 | GASKET, USB CHARGER | 1 | |
| 31 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 32 | 95701-05025-00 | BOLT FLANGE 5X25 | 1 | |
