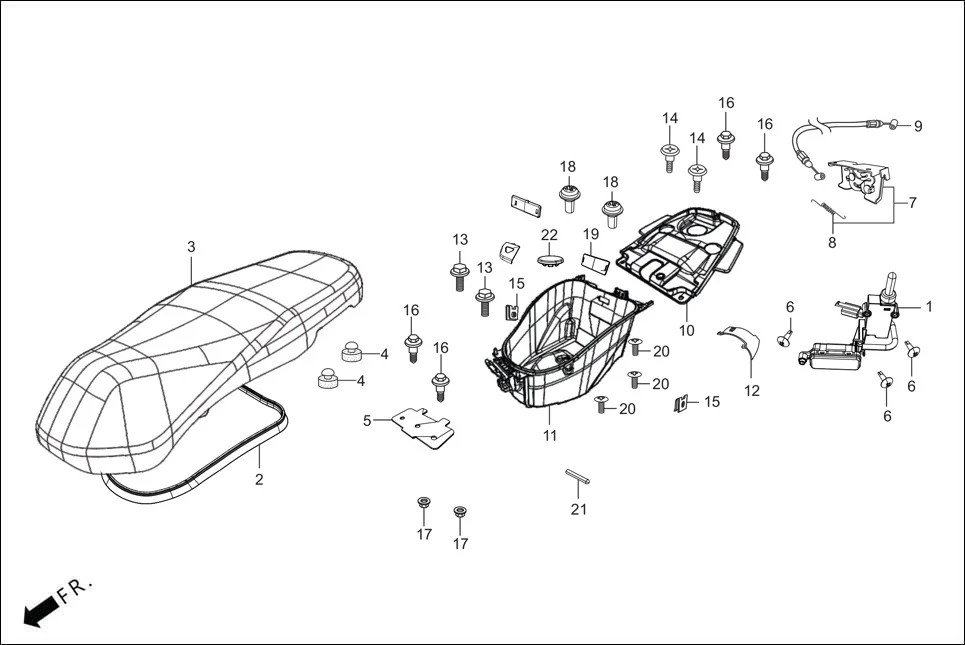

F-12-ZX - SEAT/LUGGAGE BOX/LIGHT ASSY. BOOT
Hero PLEASURE PLUS 110 BSVI OBD2 (Apr,2025) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33200-AAL-001 | LIGHT ASSY.BOOT | 1 | |
| 2 | 77115-AAL-500 | RUBBER, SEAL | 1 | |
| 3 | ADECB4U000000G | SEAT COMP., DOUBLE | 1 | |
| 3 | 77200-AAL-E202 | SEAT COMP., DOUBLE (ZX) | 1 | |
| 3 | 77200-AAL-E201 | SEAT COMP., DOUBLE (ZX) | 1 | |
| 4 | 77206-KG8-900 | RUBBER, SEAT SETTING | 1 | |
| 5 | 77201-AAL-500 | PLATE HINGE | 1 | |
| 6 | 93903-24380 | SCREW TAPPING, 4 X 12 | 3 | |
| 7 | 77235-AAL-510 | SEAT, CATCH COMP. | 1 | |
| 8 | 77236-GBL-000 | SPRING SEAT CATCH | 1 | |
| 9 | 77156-AAL-510 | CABLE SEAT LOCK | 1 | |
| 10 | 81253-AAL-500 | LUGGAGE BOX B | 1 | |
| 11 | 81250-AAL-500 | BOX LUGGAGE A | 1 | |
| 12 | 81255-KTP-900 | COVER, CARBURETTOR MAITENANCE | 1 | |
| 13 | 95701-05010-00 | BOLT FLANGE 5X10 | 2 | |
| 14 | 90116-KTP-900 | SCREW WASH 5X16 | 1 | |
| 15 | 90677-KAN-961 | NUT CLIP 5MM | 4 | |
| 16 | 93404-06012-00 | BOLT, WASHER, 6 X 12 | 4 | |
| 17 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 18 | 90101-GE0-000 | SCREW, HINGE PATCH | 8 | |
| 19 | 81252-AAW-500 | COVER FRAME NO. | 1 | |
| 20 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 21 | 90105-AAL-500 | PIN HINGE | 1 | |
| 22 | 81133-AAW-500 | CAP CHOKE CABLE | 1 | |
