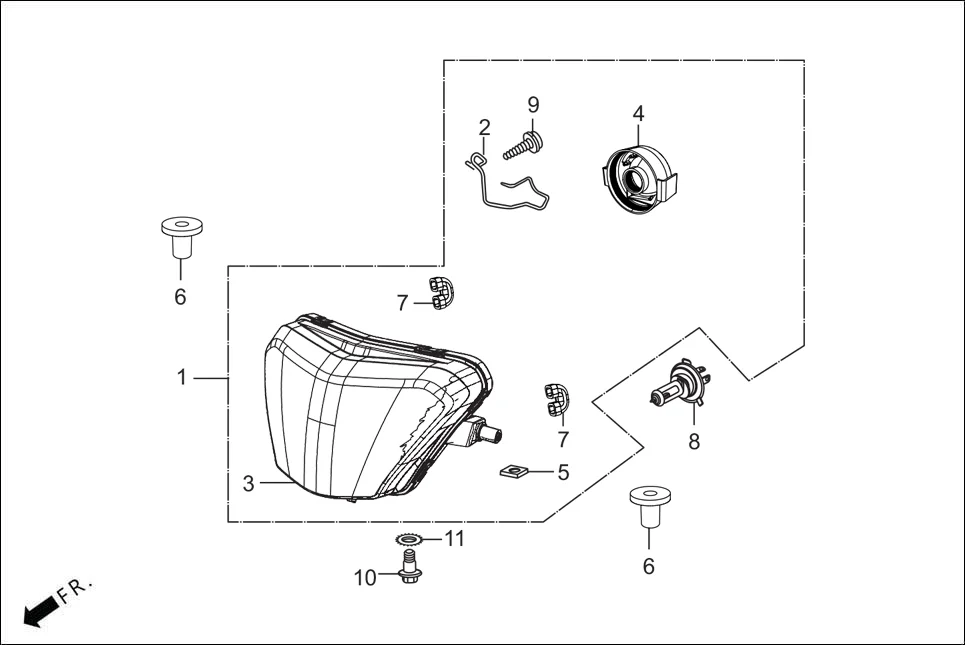

F-1-VX - HEAD LIGHT
Hero PLEASURE PLUS 110 BSVI OBD2 (Apr,2025) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3310B-AAL-501 | LIGHT ASSY., HEAD (W/O BULB) | 1 | |
| 2 | 33108-KRY-900 | SPRING, SPC(BULB HOLDER) | 1 | |
| 3 | 33110-AAL-501 | UNIT, HEAD LIGHT | 1 | |
| 4 | 33112-AAL-501 | DUST CAP | 1 | |
| 5 | 33128-GBL-000 | NUT, SPECIAL | 1 | |
| 6 | 33114-AAL-501 | GROMMET | 2 | |
| 7 | 33706-ABA-000 | PIPE CP | 2 | |
| 8 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 10 | 90103-KVH-900 | BOLT, ADJUST | 1 | |
| 11 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
