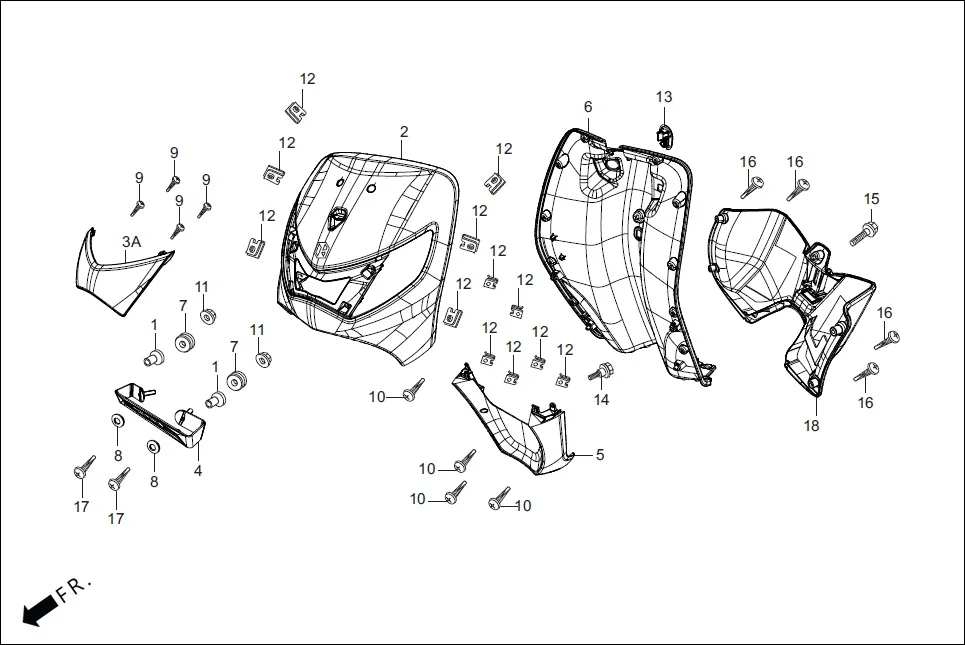

F-6-VX - FR. & INNER COVER
Hero Pleasure + 110 (July,2022) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 2 | 64210-AAL-900R | SET, FR. UPPER COVER (BLACK, NH-1) | 1 | |
| 2 | 64210-AAL-900S | SET, FR. UPPER COVER (SPORTS RED) | 1 | |
| 2 | 64210-AAL-900V | SET, FR. UPPER COVER (POLESTAR BLUE) | 1 | |
| 2 | 64210-AAL-900W | SET, FR. UPPER COVER (MATT VERNIER GREY) | 1 | |
| 3 | 64303-AAL-510 | FRONT GRILL | 1 | |
| 4 | 64311-AAL-510 | STAY FR NO PLATE | 1 | |
| 5 | 64305-AAL-500R | COVER FR LOWER (BLACK, NH-1) | 1 | |
| 5 | 64305-AAL-500S | COVER FR LOWER (SPORTS RED) | 1 | |
| 5 | 64305-AAL-500V | COVER FR LOWER (POLESTAR BLUE) | 1 | |
| 5 | 64305-AAL-500W | COVER FR LOWER (MATT VERNIER GREY) | 1 | |
| 6 | 81131-AAL-500 | COVER, INNER | 1 | |
| 7 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 8 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 9 | 93903-22280 | SCREW, TAPPING, 3X10 | 4 | |
| 10 | 93903-34480 | SCREW, TAPPING, 4X 16 | 4 | |
| 11 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 12 | 90344-AAW-000 | NUT CLIP 5MM | 12 | |
| 13 | 81133-AAL-500 | CAP CHOKE CABLE | 1 | |
| 14 | 90111-KPL-900 | BOLT, INNER COVER | 1 | |
| 15 | 90113-KST-940 | BOLT SIDE COVER | 1 | |
| 16 | 93903-25880 | SCREW TAPPING 5X40 | 4 | |
| 17 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 18 | 81300-AAL-510R | SET, RACK INNER (BLACK, NH-1) | 1 | |
| 18 | 81300-AAL-D20 | SET, RACK INNER (MAT BLACK NH-105) (ZX) | 1 | |
