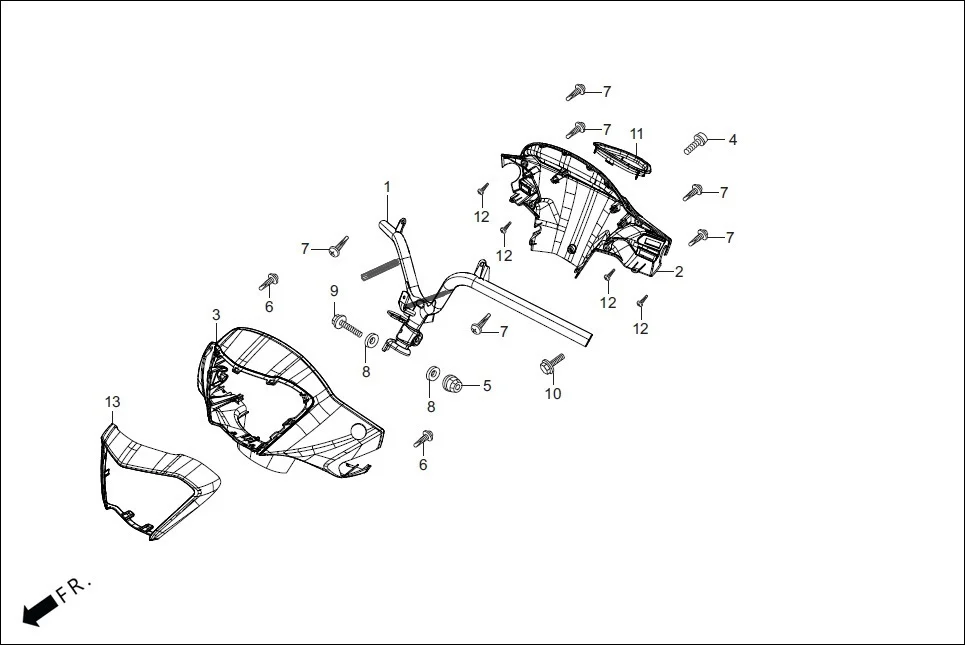

F-4-VX - STEERING HANDLE/HANDLE COVER
Hero Pleasure + 110 (July,2022) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-AAL-500 | HANDLE COMP., STRG. | 1 | |
| 2 | 53206-AAL-500 | COVER, HANDLE RR. | 1 | |
| 3 | 53205-AAL-500S | COVER HANDLE FR (SPORTS RED) | 1 | |
| 3 | 53205-AAL-500V | COVER HANDLE FR (POLESTAR BLUE) | 1 | |
| 3 | 53205-AAL-500R | COVER HANDLE FR (BLACK, NH-1) | 1 | |
| 3 | 53205-AAL-500W | COVER HANDLE FR (MATT VERNIER GREY) | 1 | |
| 4 | 90116-KTP-900 | SCREW WASH 5X16 | 1 | |
| 5 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 6 | 93903-22280 | SCREW, TAPPING, 3X10 | 2 | |
| 7 | 93903-34480 | SCREW, TAPPING, 4X 16 | 6 | |
| 8 | 94102-10000 | WASHER, PLAIN, 10MM | 2 | |
| 9 | 95801-10045-00 | BOLT FLANGE 10X45 | 1 | |
| 10 | 90113-AAY-000 | BOLT FLANGE, 5 X 17 | 1 | |
| 11 | 53209-AAL-500 | SPEEDO METER BEZEL | 1 | |
| 12 | 90313-AAL-500 | SPEED NUT 3MM | 4 | |
| 13 | 53208-AAL-510 | FR. HANDLE COVER CHROME | 1 | |
