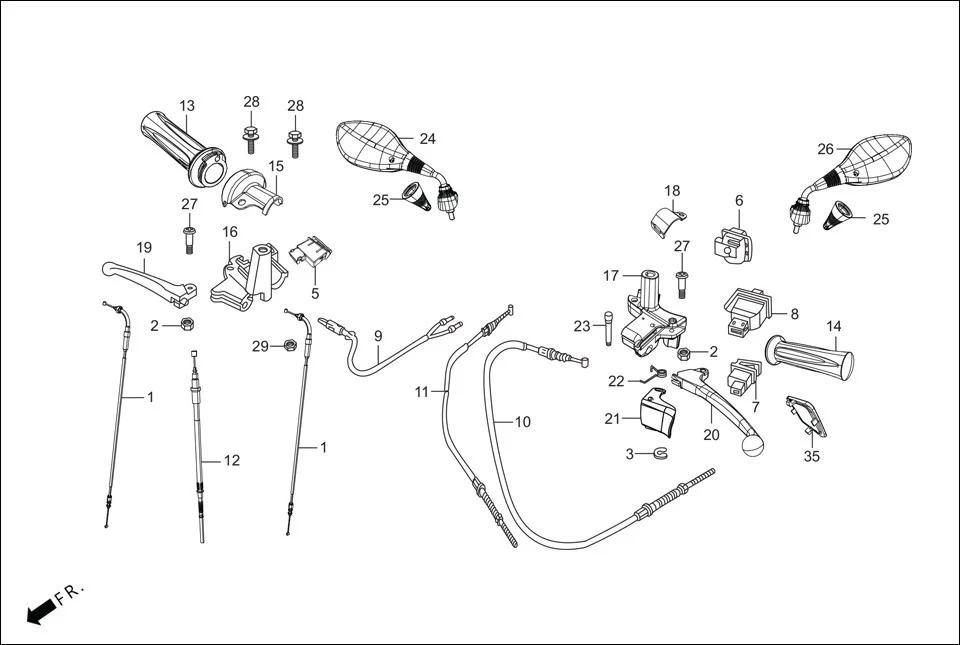

F-3-VX-HANDLE LEVER/SWITCH/CABLE
HeroPleasure + 110 (July,2022) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ADE-10099 | CABLE COMP. THROTTLE | 1 | |
| 2 | 90304-KPL-900 | NUT HEX 5 MM | 2 | |
| 3 | 30158-GW3-980 | RING E TYPE 3MM | 1 | |
| 5 | 35160-AAL-901 | SWITCH, UNIT START | 1 | |
| 6 | 35170-KTP-890 | SW UNIT DIMMER | 1 | |
| 7 | 35180-KTP-890 | SWITCH, UNIT HORN | 1 | |
| 8 | 35200-ABH-501 | SWITCH, UNIT WINKER | 1 | |
| 9 | 35340-KTP-890 | SWITCH ASSY., FR. STOP | 1 | |
| 10 | 43450-AAW-000 | CABLE COMP, RR BRAKE | 1 | |
| 11 | 45440-AAL-100 | CABLE COMP LH FR BRK | 1 | |
| 12 | 45450-AAL-100 | CABLE COMP RH FR BRK | 1 | |
| 13 | 53140-ADE-100 | GRIP COMP., THROT. | 1 | |
| 14 | 53166-KTP-900 | GRIP L HANDLE | 1 | |
| 15 | 53167-ABG-000 | HOUSING, UPP., THROT | 1 | |
| 16 | 53168-ADE-100 | HOUSING UNDER THROTTLE. | 1 | |
| 17 | 53172-AAL-100 | BRKT HANDLE | 1 | |
| 18 | 53173-KPL-900 | BAND, HANDLE BRKT | 1 | |
| 19 | 53175-KTP-900 | LEVER, R. STRG. HANDLE | 1 | |
| 20 | 53178-AAL-100 | LEVER L HANDLE | 1 | |
| 21 | 53181-AAL-100 | LEVER COMP PARKING | 1 | |
| 22 | 53182-AAL-100 | SPRING RETURN LEVER | 1 | |
| 23 | 53183-GW3-980 | PIN, PIVOT, PARKING LEVER | 1 | |
| 24 | 88110-AAL-510 | MIRROR ASSY R BACK | 1 | |
| 25 | 88115-KTR-900 | BOOT, MIRROR UPPER | 2 | |
| 26 | 88120-AAL-510 | MIRROR ASSY L BACK | 1 | |
| 27 | 90115-KPL-900 | SCREW, HNDL LEVER PIVOT | 2 | |
| 28 | 93401-06020-00 | BOLT, WASHER, 6 X 20 | 2 | |
| 29 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
| 35 | 81257-AAL-D20 | CAP SW I3S | 1 |
