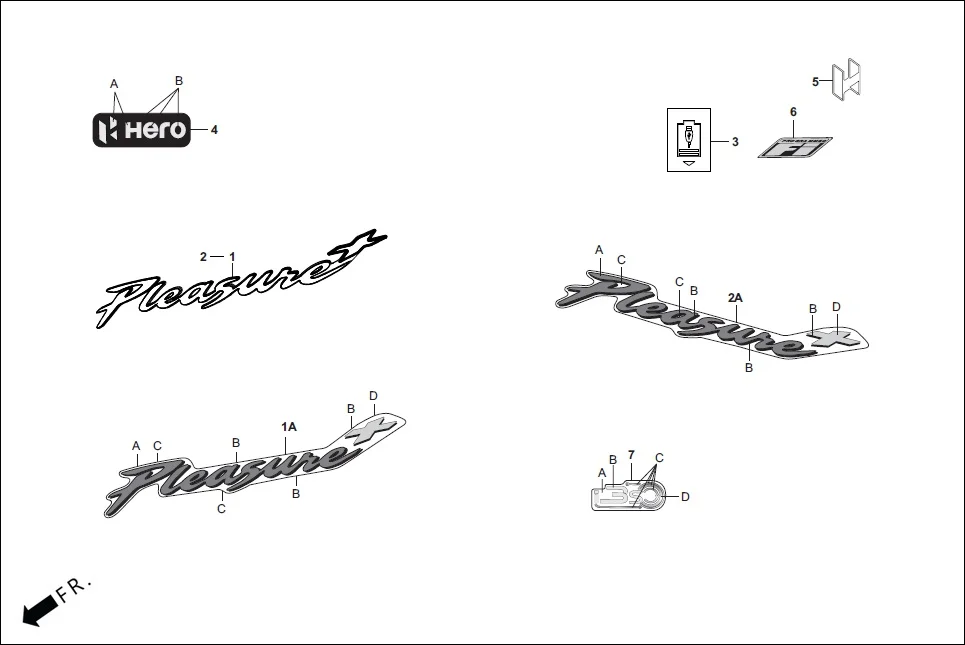

F-26-VX - MARK/STRIPE
Hero Pleasure + 110 (July,2022) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86833-AAL-D00 | EMBLEM R BODY COVER | 1 | |
| 1 | 86353-AAL-500R | STRIPE R BODY COVER (TYPE-1) | 1 | |
| 1 | 86353-AAL-500V | STRIPE R BODY COVER (TYPE-5) | 1 | |
| 1 | 86353-AAL-500S | STRIPE R BODY COVER (TYPE-2) | 1 | |
| 2 | 86834-AAL-D00 | EMBLEM L BODY COVER | 1 | |
| 2 | 86354-AAL-500R | STRIPE L BODY COVER (TYPE-1) | 1 | |
| 2 | 86354-AAL-500V | STRIPE L BODY COVER (TYPE-5) | 1 | |
| 2 | 86354-AAL-500S | STRIPE L BODY COVER (TYPE-2) | 1 | |
| 3 | 86375-AAL-500R | MARK RACK INNER (TYPE-1) | 1 | |
| 4 | 86355-AAL-500R | MARK HERO COVER RR CENTER (TYPE-1) | 1 | |
| 5 | 86830-AAF-400 | EMBLEM WINDSCREEN | 1 | |
| 5 | 86830-AAL-900S | EMBLEM H MARK | 1 | |
| 5 | 86830-AAL-900V | EMBLEM H MARK | 1 | |
| 5 | 86830-ABH-200S | EMBLEM H MARK | 1 | |
| 6 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 6 | 85405-ACV-500 | PROGRAMMED FI DOMING R | 1 | |
| 7 | 86216-AAL-E20R | MARK I3S FR UPPER COVER (TYPE-1) | 1 | |
