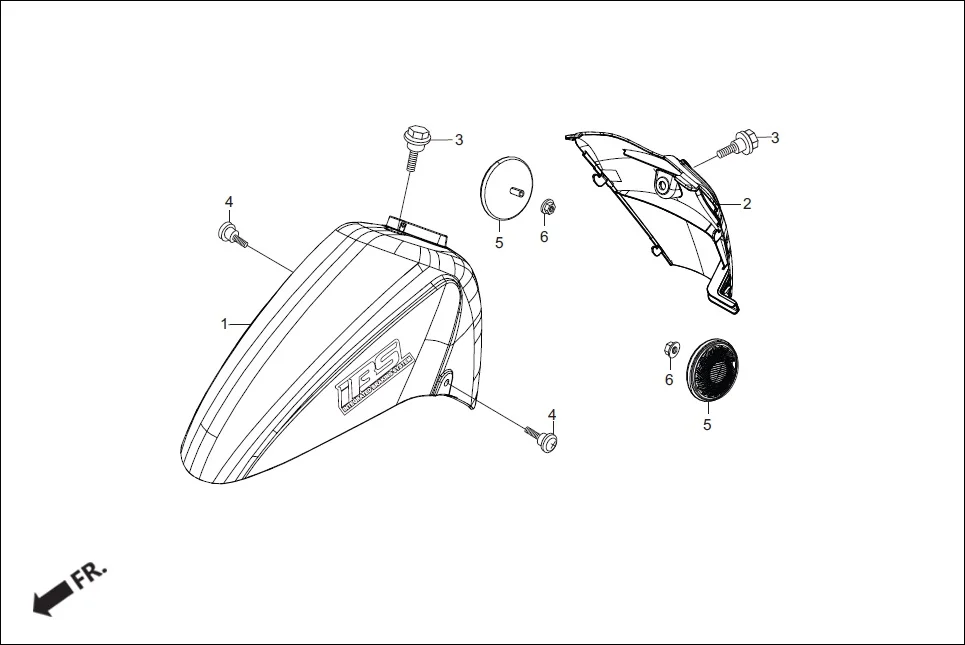

F-5-VX-FRONT FENDER
HeroPleasure + BSVI (Jan, 2020) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61105-AAL-500R | SET, FR. FENDER (BLACK, NH-1) | 1 | |
| 1 | 61105-AAL-500S | SET, FR. FENDER (SPORTS RED) | 1 | |
| 1 | 61105-AAL-500U | SET, FR. FENDER (MATT METALLIC RED) | 1 | |
| 1 | 61105-AAL-500V | SET, FR. FENDER (POLESTAR BLUE) | 1 | |
| 1 | 61105-AAL-500W | SET, FR. FENDER (MATT VERNIER GREY) | 1 | |
| 1 | 61105-AAL-500X | SET, FR. FENDER (BOTTLE GREEN) | 1 | |
| 1 | 61105-AAL-500Z | SET, FR. FENDER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 2 | 61110-AAL-500 | FENDER, B, FR . | 1 | |
| 3 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 2 | |
| 5 | 33741-AAN-601 | REFLEX REFLECTOR FRONT | 2 | |
| 5 | 33741-AAG-B01 | REFLEX REFLECTOR | 2 | |
| 6 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 |
