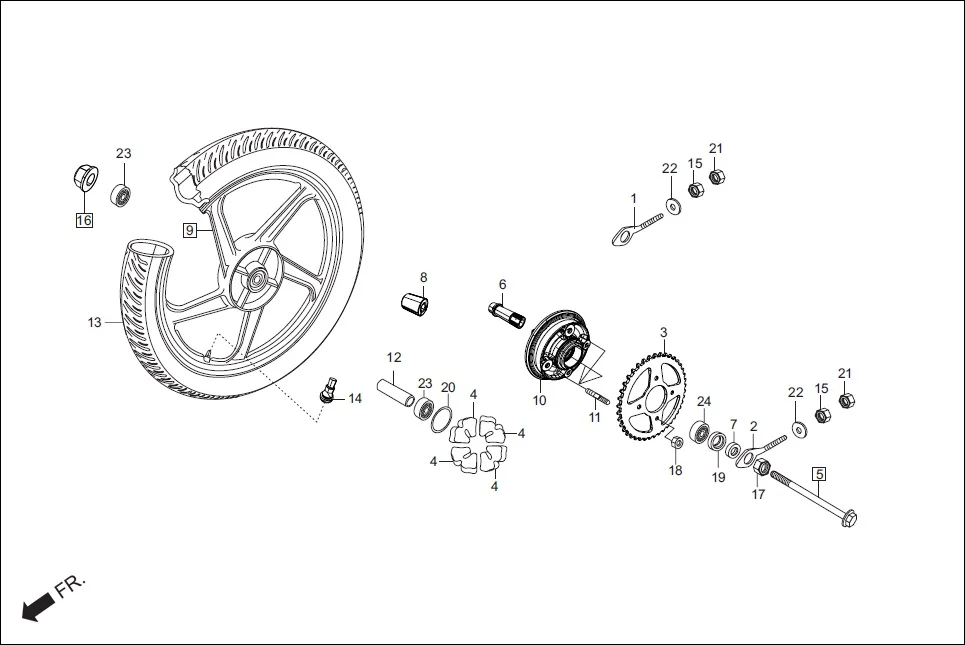

F-9-REAR WHEEL
HeroPassion X PRO (Jan, 2019) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40543-198-900 | ADJUSTER, R CHAIN | 1 | |
| 2 | 40544-198-900 | ADJUSTER, L CHAIN | 1 | |
| 3 | 41201-ABA-000 | SPROCKET FINAL DRIVEN 40T | 1 | |
| 4 | 41241-AAN-410 | DAMPER, REAR WHEEL | 4 | |
| 5 | 42301-ABA-000 | AXLE RR WHEEL | 1 | |
| 6 | 42303-AAH-100 | SLEEVE REAR WHEEL | 1 | |
| 7 | 42304-198-900 | COLLAR, RR.AXLE SLEEVE | 1 | |
| 8 | 42313-KCC-600 | COLLAR RR. BRAKE PANEL SIDE | 1 | |
| 9 | K42426AAZA000S | KIT, WHEEL COMP. REAR | 1 | |
| 10 | 42611-KWA-940 | FLANGE FINAL DRIVEN | 1 | |
| 11 | 42615-AAC-400 | BOLT, STUD 8X35.5 | 4 | |
| 12 | 42620-KTR-700 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 13 | 42711-AAN-41099 | TIRE REAR | 1 | |
| 14 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 15 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 16 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 16 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 17 | 90307-001-000 | NUT ,RR. AXLE SLEEVE | 1 | |
| 18 | 90309-357-000 | NUT, HEX .,8MM | 4 | |
| 19 | 90753-029-000 | OIL SEAL, 27 X 40 X 6 | 1 | |
| 20 | 91304-704-000 | O-RING 42 MM | 1 | |
| 21 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 22 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 23 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 24 | 96150-62030-10 | BEARING, BALL RADIAL, 6203 (UU) | 1 |
