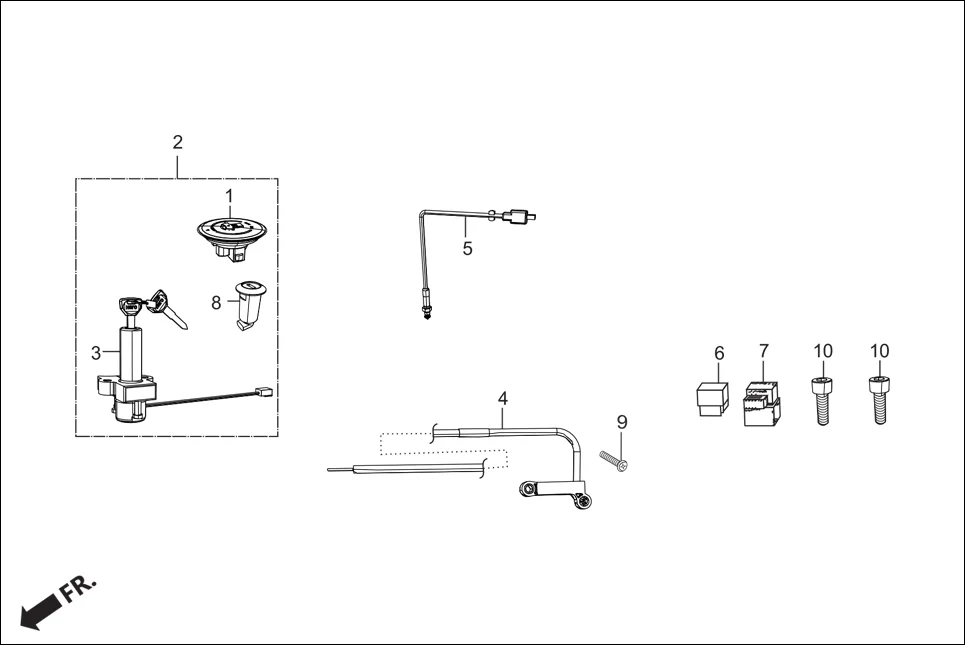

F-3B-SW.& RELAY (SW. ASSY. COMB & LOCK/KEY SET)
HeroPassion X PRO (Jan, 2019) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17620-AAT-000 | CAP COMP, FUEL FILLER | 1 | |
| 2 | 35010-AAC-701 | KEY SET | 1 | |
| 3 | 35100-AAC-701 | SW. ASSY. COMB & LOCK | 1 | |
| 4 | 35140-AAD-00099 | SENSOR ASSY SIDE STAND | 1 | |
| 5 | 35350-KWA-940 | SWITCH ASSY., REAR STOP (SELF) | 1 | |
| 6 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 7 | 38506-KWA-840 | SUSP. START RELAY | 1 | |
| 8 | 77110-AAC-H00 | LOCK ASSY SEAT | 1 | |
| 9 | 93891-05014-18 | SCREW, WASHER, 5 X 14 | 1 | |
| 10 | 96700-08020-00 | BOLT SOCKET, 8 MM | 2 |
