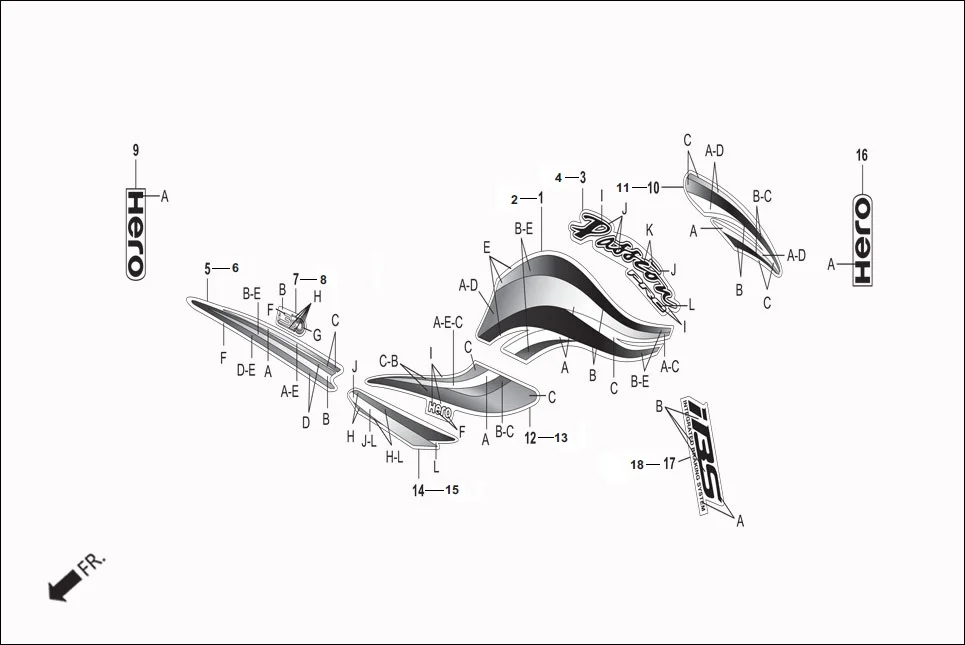

F-24-STRIPES/MARKS/EMBLEMS
HeroPassion Pro iBS (Feb, 2019) · 64 parts
Parts in This Assembly (64)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 87271-AAT-000R | STRIPE, AR. FUEL TANK (TYPE-1) | 1 | |
| 1 | 87271-AAT-000S | STRIPE, AR. FUEL TANK (TYPE-2) | 1 | |
| 1 | 87271-AAT-000T | STRIPE, AR. FUEL TANK (TYPE-3) | 1 | |
| 1 | 87271-AAT-000U | STRIPE, AR. FUEL TANK (TYPE-4) | 1 | |
| 1 | 87271-AAT-000V | STRIPE, AR. FUEL TANK (TYPE-5) | 1 | |
| 2 | 87272-AAT-000R | STRIPE, AL. FUEL TANK (TYPE-1) | 1 | |
| 2 | 87272-AAT-000S | STRIPE, AL. FUEL TANK (TYPE-2) | 1 | |
| 2 | 87272-AAT-000T | STRIPE, AL. FUEL TANK (TYPE-3) | 1 | |
| 2 | 87272-AAT-000U | STRIPE, AL. FUEL TANK (TYPE-4) | 1 | |
| 2 | 87272-AAT-000V | STRIPE, AL. FUEL TANK (TYPE-5) | 1 | |
| 3 | 87273-AAT-000R | STRIPE, BR. FUEL TANK (TYPE-1) | 1 | |
| 3 | 87273-AAT-000S | STRIPE, BR. FUEL TANK (TYPE-2) | 1 | |
| 3 | 87273-AAT-000T | STRIPE, BR. FUEL TANK (TYPE-3) | 1 | |
| 4 | 87274-AAT-000R | STRIPE, BL. FUEL TANK (TYPE-1) | 1 | |
| 4 | 87274-AAT-000S | STRIPE, BL. FUEL TANK (TYPE-2) | 1 | |
| 4 | 87274-AAT-000T | STRIPE, BL. FUEL TANK (TYPE-3) | 1 | |
| 5 | 87377-AAT-000R | STRIPE, RIGHT SIDE COWL (TYPE-1) | 1 | |
| 5 | 87377-AAT-000S | STRIPE, RIGHT SIDE COWL (TYPE-2) | 1 | |
| 5 | 87377-AAT-000T | STRIPE, RIGHT SIDE COWL (TYPE-3) | 1 | |
| 5 | 87377-AAT-000U | STRIPE, RIGHT SIDE COWL (TYPE-4) | 1 | |
| 5 | 87377-AAT-000V | STRIPE, RIGHT SIDE COWL (TYPE-5) | 1 | |
| 6 | 87378-AAT-000R | STRIPE, LEFT SIDE COWL (TYPE-1) | 1 | |
| 6 | 87378-AAT-000S | STRIPE, LEFT SIDE COWL (TYPE-2) | 1 | |
| 6 | 87378-AAT-000T | STRIPE, LEFT SIDE COWL (TYPE-3) | 1 | |
| 6 | 87378-AAT-000U | STRIPE, LEFT SIDE COWL (TYPE-4) | 1 | |
| 6 | 87378-AAT-000V | STRIPE, LEFT SIDE COWL (TYPE-5) | 1 | |
| 7 | 87375-AAT-0000 | MARK I3S R SIDE COWL | 1 | |
| 8 | 87376-AAT-0000 | MARK I3S L. SIDE COWL | 1 | |
| 9 | 87277-AAT-000 | MARK HERO CENTER RR COWL | 1 | |
| 10 | 87275-AAT-000R | STRIPE RIGHT, FR. VISOR (TYPE-1) | 1 | |
| 10 | 87275-AAT-000S | STRIPE RIGHT, FR. VISOR (TYPE-2) | 1 | |
| 10 | 87275-AAT-000T | STRIPE RIGHT, FR. VISOR (TYPE-3) | 1 | |
| 10 | 87275-AAT-000U | STRIPE RIGHT, FR. VISOR (TYPE-4) | 1 | |
| 10 | 87275-AAT-000V | STRIPE RIGHT, FR. VISOR (TYPE-5) | 1 | |
| 11 | 87276-AAT-000R | STRIPE LEFT, FR. VISOR (TYPE-1) | 1 | |
| 11 | 87276-AAT-000S | STRIPE LEFT, FR. VISOR (TYPE-2) | 1 | |
| 11 | 87276-AAT-000T | STRIPE LEFT, FR. VISOR (TYPE-3) | 1 | |
| 11 | 87276-AAT-000U | STRIPE LEFT, FR. VISOR (TYPE-4) | 1 | |
| 11 | 87276-AAT-000V | STRIPE LEFT, FR. VISOR (TYPE-5) | 1 | |
| 12 | 87371-AAT-000R | STRIPE, ARIGHT SIDE COVER (TYPE-1) | 1 | |
| 12 | 87371-AAT-000S | STRIPE, ARIGHT SIDE COVER (TYPE-2) | 1 | |
| 12 | 87371-AAT-000T | STRIPE, ARIGHT SIDE COVER (TYPE-3) | 1 | |
| 12 | 87371-AAT-000U | STRIPE, ARIGHT SIDE COVER (TYPE-4) | 1 | |
| 12 | 87371-AAT-000V | STRIPE, ARIGHT SIDE COVER (TYPE-5) | 1 | |
| 13 | 87372-AAT-000R | STRIPE, ALEFT SIDE COVER (TYPE-1) | 1 | |
| 13 | 87372-AAT-000S | STRIPE, ALEFT SIDE COVER (TYPE-2) | 1 | |
| 13 | 87372-AAT-000T | STRIPE, ALEFT SIDE COVER (TYPE-3) | 1 | |
| 13 | 87372-AAT-000U | STRIPE, ALEFT SIDE COVER (TYPE-4) | 1 | |
| 13 | 87372-AAT-000V | STRIPE, ALEFT SIDE COVER (TYPE-5) | 1 | |
| 14 | 87373-AAT-000R | STRIPE, BRIGHT SIDE COVER (TYPE-1) | 1 | |
| 14 | 87373-AAT-000S | STRIPE, BRIGHT SIDE COVER (TYPE-2) | 1 | |
| 14 | 87373-AAT-000T | STRIPE, BRIGHT SIDE COVER (TYPE-3) | 1 | |
| 14 | 87373-AAT-000U | STRIPE, BRIGHT SIDE COVER (TYPE-4) | 1 | |
| 14 | 87373-AAT-000V | STRIPE, BRIGHT SIDE COVER (TYPE-5) | 1 | |
| 15 | 87374-AAT-000R | STRIPE, BLEFT SIDE COVER (TYPE-1) | 1 | |
| 15 | 87374-AAT-000S | STRIPE, BLEFT SIDE COVER (TYPE-2) | 1 | |
| 15 | 87374-AAT-000T | STRIPE, BLEFT SIDE COVER (TYPE-3) | 1 | |
| 15 | 87374-AAT-000U | STRIPE, BLEFT SIDE COVER (TYPE-4) | 1 | |
| 15 | 87374-AAT-000V | STRIPE, BLEFT SIDE COVER (TYPE-5) | 1 | |
| 16 | 87278-AAT-000 | MARK HERO WIND SCREEN | 1 | |
| 17 | 86780-AAC-900R | MARK IBS FR FENDER RH | 1 | |
| 17 | 86780-AAC-900S | MARK IBS FR FENDER RH | 1 | |
| 18 | 86880-AAC-900R | MARK IBS FR FENDER LH | 1 | |
| 18 | 86880-AAC-900S | MARK IBS FR FENDER LH | 1 |
