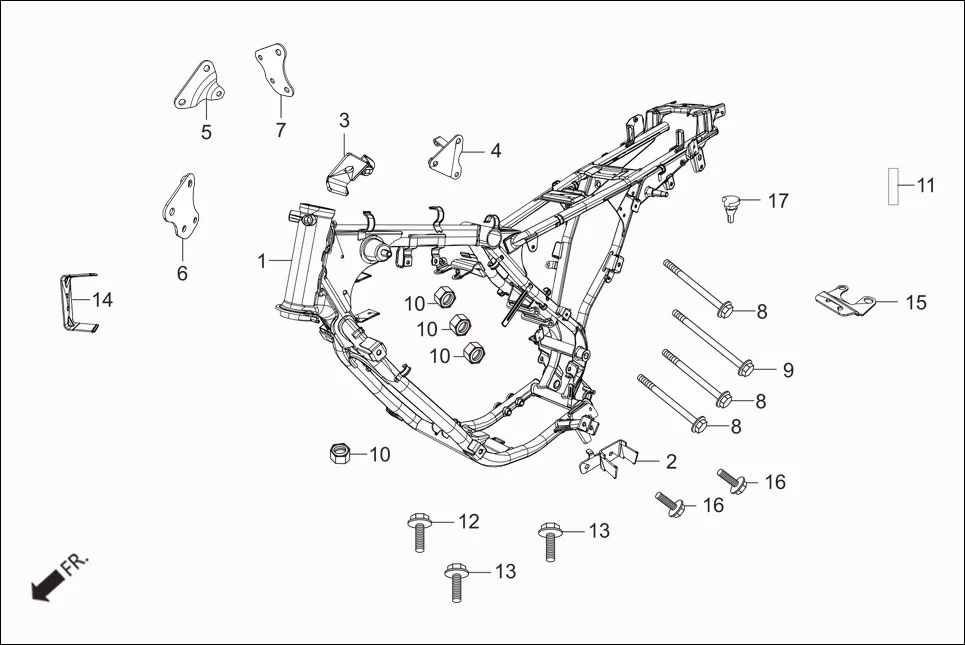

F-22-FRAME BODY
HeroPassion Pro iBS (Feb, 2019) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-AAT-200 | FRAME BODY COMP | 1 | |
| 2 | 50150-AAT-000 | STAY. ST/RELAY | 1 | |
| 3 | 50163-AAT-000 | SIDE COVER MOUNTING BRACKET | 1 | |
| 4 | 50353-AAT-000 | PLATE ENGINE HANGER RR | 1 | |
| 5 | 50354-ABA-000 | PLATE ENG HANGER RR L | 1 | |
| 6 | 50534-ABA-000 | PLATE ENG HANGER FR R | 1 | |
| 7 | 50535-ABA-000 | PLATE ENG HANGER FR L | 1 | |
| 8 | 95801-08100-08 | BOLT FLANGE 8X100 | 3 | |
| 9 | 90117-KCC-900 | BOLT, FLANGE, 8 X 110 | 1 | |
| 10 | 94030-08000 | NUT, HEX., 8 MM | 8 | |
| 11 | 90101-KCC-940 | BOLT WASH, 6 X 25 | 2 | |
| 12 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 13 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 14 | 50220-AAT-000 | BRKT. I3S CONTROLLER | 1 | |
| 15 | 50350-AAT-000 | STAY AIR SUCTION VAVLE | 1 | |
| 16 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 2 | |
| 17 | 50137-AAR-000 | PLUG CABLE RETENTION | 1 |
