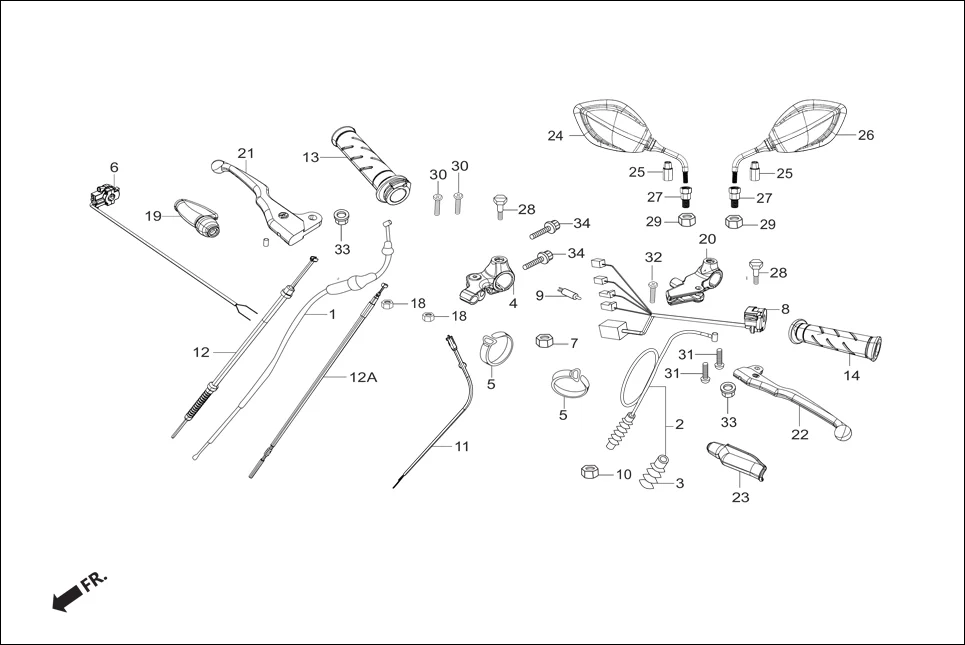

F-3-SELF-HANDLE LEVER/SWITCH/CONTROL CABLE
HeroPassion Pro (Jan, 2019) · 42 parts
Parts in This Assembly (42)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-KWA-940 | CABLE COMP. THROT. | 1 | |
| 2 | 22870-AAC-910 | CABLE COMP., CLUTCH | 1 | |
| 3 | 22871-116-670 | BOOT, CLUTCH CABLE | 1 | |
| 4 | 53173-KTR-A20 | BRACKET., R. HANDLE LEVER | 1 | |
| 5 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 6 | 35150-AAC-00099 | SW ASSY START & I3S | 1 | |
| 7 | 94002-08000-0S | NUT HEX.8 MM | 1 | |
| 8 | 35200-AAC-71099 | SW.ASSY.WINKER | 1 | |
| 9 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 10 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
| 11 | 35340-KCC-900 | SWITCH ASSY., FR. STOP | 1 | |
| 12 | 45475-AAT-200 | CABLE COMP, FR BRAKE | 1 | |
| 12 | 45450-AAH-F00 | CABLE COMP. COMBI BRAKE | 1 | |
| 13 | 53140-AAC-000 | GRIP COMP THROTTLE | 1 | |
| 14 | 53166-AAC-000 | GRIP L HANDLE | 1 | |
| 18 | 94001-05070-0S | NUT HEX. 5MM | 2 | |
| 19 | 53171-KCC-900 | COVER R HANDLE LEVER | 1 | |
| 20 | 53172-KTC-920 | BRACKET, L HANDLE LEVER | 1 | |
| 21 | 53175-AAF-H00 | LEVER COMP.R STRG.HNDL. | 1 | |
| 22 | 53178-AAF-H00 | LEVER COMP.L STRG.HNDL. | 1 | |
| 23 | 53179-KTC-900 | COVER L HANDLE LEVER | 1 | |
| 24 | 88110-AAC-201R | MIRROR ASSY R BACK(BLK , NH-1 ) | 1 | |
| 24 | 88110-AAC-201U | MIRROR ASSY R BACK(SRD, R-321) | 1 | |
| 24 | 88110-AAC-201V | MIRROR ASSY R BACK(BYM, YL-002M) | 1 | |
| 24 | 88110-AAC-201W | MIRROR ASSY R BACK(FSM, NH-411M) | 1 | |
| 24 | 88110-AAC-201X | MIRROR ASSY R BACK(PFW, NH-341P) | 1 | |
| 24 | 88110-AAC-201Y | MIRROR ASSY R BACK(MBM, RD-018M) | 1 | |
| 25 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 26 | 88120-AAC-201R | MIRROR ASSY L BACK(BLK , NH-1 ) | 1 | |
| 26 | 88120-AAC-201U | MIRROR ASSY L BACK(SRD, R-321) | 1 | |
| 26 | 88120-AAC-201V | MIRROR ASSY L BACK(BYM, YL-002M) | 1 | |
| 26 | 88120-AAC-201W | MIRROR ASSY L BACK(FSM, NH-411M) | 1 | |
| 26 | 88120-AAC-201X | MIRROR ASSY L BACK(PFW, NH-341P) | 1 | |
| 26 | 88120-AAC-201Y | MIRROR ASSY L BACK(MBM, RD-018M) | 1 | |
| 27 | 90003-KCC-840 | BOLT, ADPT.10MM | 2 | |
| 28 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 2 | |
| 29 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 30 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 31 | 93500-05022-1G | SCREW, PAN, 5 X 22 | 2 | |
| 32 | 93901-32220 | SCREW TAPPING 3X10 | 1 | |
| 33 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 34 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 2 |
