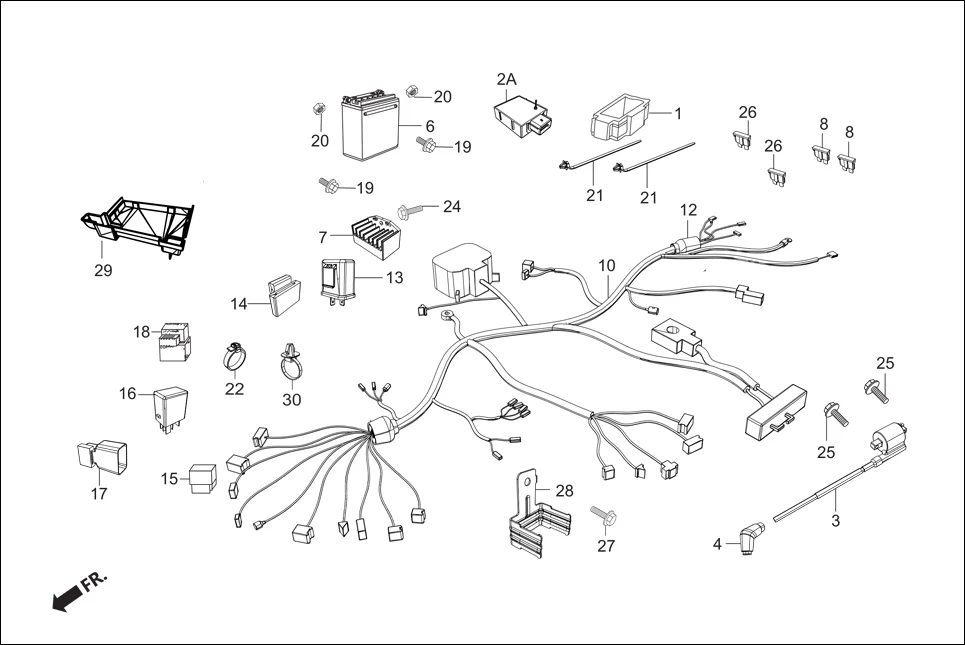

F-24-SELF - WIRE HARNESS/BATTERY
Hero Passion Pro (Jan, 2019) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-ABA-001 | CUSHION CDI & I3S | 1 | |
| 2 | 30480-AAE-211 | UNIT COMP CDI & I3S | 1 | |
| 6 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 10 | 32100-AAC-910 | HARNESS, WIRE (SELF) | 1 | |
| 15 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 15 | 38501-AAE-30099 | RELAY COMP START | 1 | |
| 28 | 50150-AAH-810 | STAY, ST/RELAY | 1 | |
| 30 | 91541-ABG-000 | CLIP BAND | 1 | |
