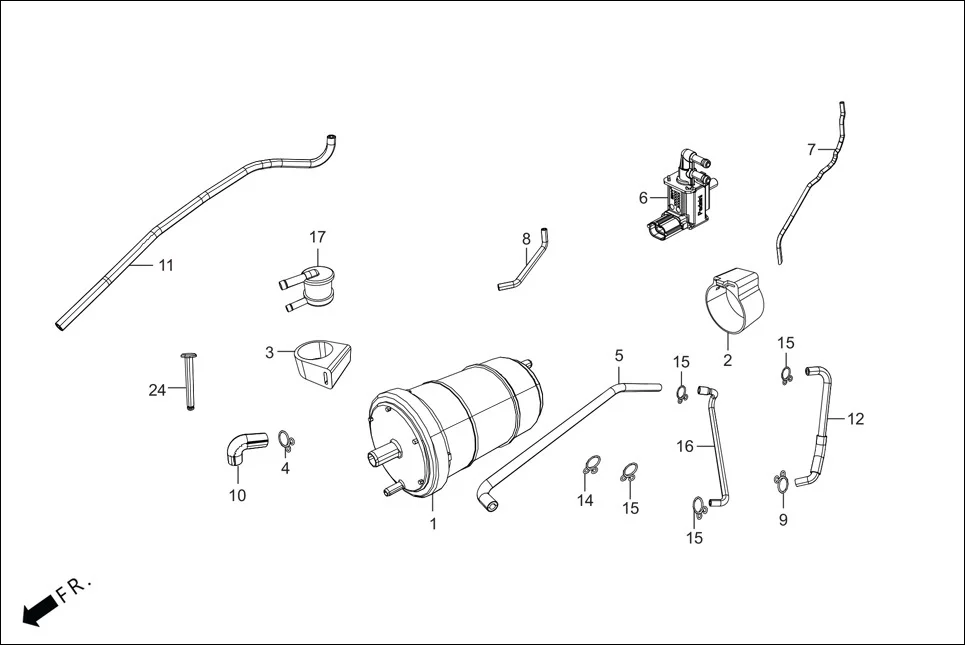

F-13A-NCS - CANISTER ASSY.
Hero Passion-HZ(May,2023) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAC-700 | CANISTER COMP | 1 | |
| 2 | 17411-AAE-300 | SUSP. CANISTER | 1 | |
| 3 | 17421-AAE-100 | SUSP. ROLL OVER VALVE | 1 | |
| 4 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 5 | 1769B-AAC-K00 | TUBE A CANISTER SUB ASSY | 1 | |
| 6 | 17554-AAE-B0099 | PURGE SOLENOID VALVE | 1 | |
| 7 | 1719A-AAC-K00 | TUBE DRAIN ASSY | 1 | |
| 8 | 1769E-AAC-K00 | TUBE BREATHER SUB ASSY | 1 | |
| 9 | 95002-70000 | CLIP, C11 TUBE | 1 | |
| 10 | 17695-AAE-100 | TUBE D CANISTER BREATHER | 1 | |
| 11 | 17696-AAE-100 | TUBE C CANISTER DRAIN | 1 | |
| 12 | 1769K-AAC-K00 | PURGE TUBE A SUB ASSY | 1 | |
| 14 | 95002-02100 | CLIP, B-10 TUBE | 1 | |
| 15 | 95002-02080 | CLIP, TUBE | 8 | |
| 16 | 1769M-AAC-K00 | PURGE TUBE B SUB ASSY | 1 | |
| 17 | 17420-AAD-A00 | ROLL OVER VALVE | 1 | |
