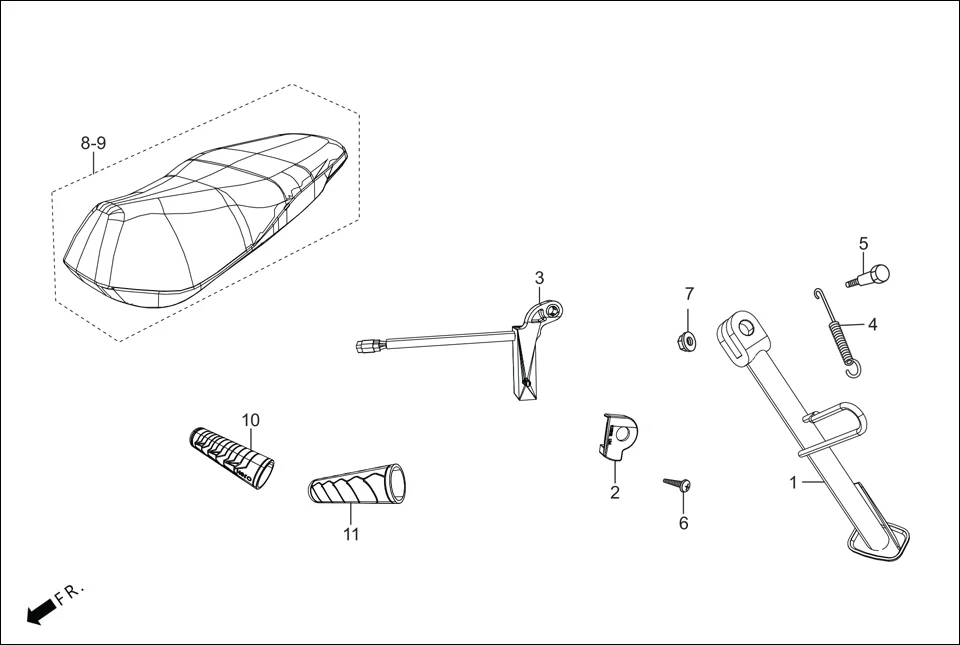

FOP-4 - MAGNET HOLDER ASSY./SIDE STAND (OPTIONAL)
Hero Maestro EDGE (OCT, 2021) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50530-AAW-000 | BAR COMP. SIDE STAND | 1 | |
| 2 | 3514A-ABH-50099 | SENSOR SIDE STAND ASSY | 1 | |
| 3 | 35140-ABH-501 | SENSOR ASSY SIDE STAND | 1 | |
| 4 | 50536-KPL-900 | SPG. SIDE SET | 1 | |
| 5 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 6 | 93891-05014-18 | SCREW, WASHER, 5 X 14 | 1 | |
| 7 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 8 | 99630-AAW-001 | SEAT COVER-EL BASIC MAESTRO EDGE | 1 | |
| 8 | 99631-AAW-001 | SEAT COVER-EL CARBON MAESTRO EDGE | 1 | |
| 8 | 99632-AAW-001 | SEAT COVER-CARBON & LAMINATION MAESTRO | 1 | |
| 8 | 99634-AAW-001 | SEAT COVER-SL SIDE & LAMINATION MAESTRO | 1 | |
| 9 | 7720B-AAW-000 | COVER ASSY. SEAT | 1 | |
| 10 | 99620-AAW-001 | GRIP COVER - FLUID (SET OF 2) | 1 | |
| 11 | 99621-AAW-001 | GRIP COVER - WEDGE (SET OF 2) | 1 | |
