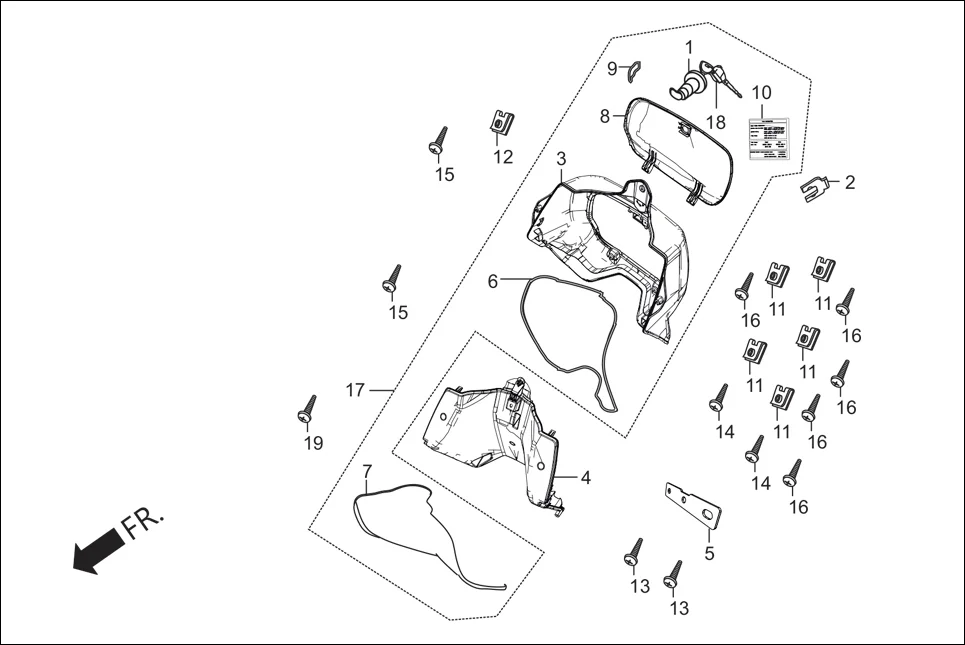

FOP-2 - FR. INNER BOX (OPTIONAL)
Hero Maestro EDGE (OCT, 2021) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77232-AAW-000 | LOCK ASSY. INNER BOX | 1 | |
| 2 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 3 | 81134-AAW-000 | OUTER INNER BOX | 1 | |
| 4 | 81135-AAW-000 | INNER INNER BOX | 1 | |
| 5 | 81136-AAW-000 | STAY INNER BOX | 1 | |
| 6 | 81137-AAW-000 | SEAL INNER BOX | 1 | |
| 7 | 81138-AAW-000 | SEAL OUTER INNER | 1 | |
| 8 | 81141-AAW-000 | LID INNER BOX | 1 | |
| 9 | 81143-AAW-300 | PIN LID INNER BOX | 1 | |
| 10 | 87505-AAW-000 | LABEL TYRE | 1 | |
| 11 | 90344-AAW-000 | NUT CLIP 5MM | 5 | |
| 12 | 90677-KAN-961 | NUT CLIP 5MM | 1 | |
| 13 | 93903-25880 | SCREW TAPPING 5X40 | 2 | |
| 14 | 93903-25580 | SCREW TAPPING 5X25 | 2 | |
| 15 | 93903-35380 | SCREW TAPPING 5X16 | 2 | |
| 16 | 93903-25380 | SCREW TAPPING 5X16 | 5 | |
| 17 | 81130-AAW-000 | BOX ASSY INNER | 1 | |
| 18 | 81145-AAW-000 | KEY SET INNER BOX | 1 | |
| 19 | 93891-05016-07 | SCREW WASH 5X16 | 1 | |
