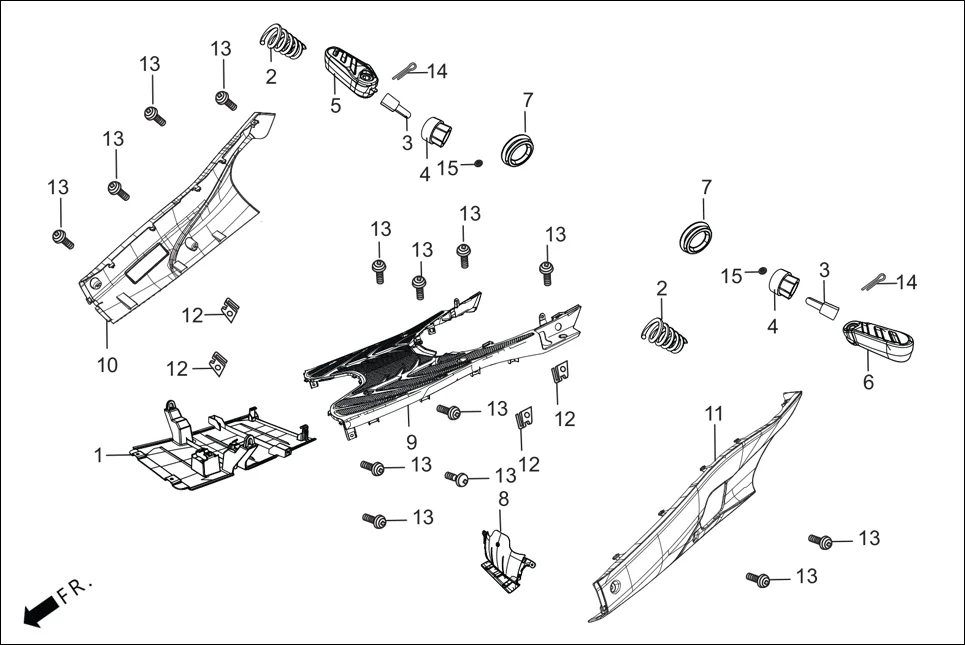

F-7-FLOOR PANEL
HeroMaestro EDGE BSVI(Dec, 2021) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-AAW-000 | COV. UNDER | 1 | |
| 2 | 50633-AAW-000 | PILLION STEP SPRING | 2 | |
| 3 | 50638-AAW-000 | PIN STEP BAR PILLION | 2 | |
| 4 | 50646-ACV-500 | PILLION STEP BUSH | 2 | |
| 5 | 50710-ACV-500 | PILLION R STEP | 1 | |
| 6 | 50715-ACV-500 | PILLION L STEP | 1 | |
| 7 | 64150-AAW-000 | PANEL FLOOR RUBBER CAP | 2 | |
| 8 | 64309-AAW-000 | FRONT COV. LOWER | 1 | |
| 9 | 64310-AAW-000 | PANEL FLOOR | 1 | |
| 10 | 6432A-AAW-B00R | COVER R FLOOR SIDE SUB ASSY (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 10 | 6432A-AAW-B00T | COVER R FLOOR SIDE SUB ASSY (TECHNO BLUE ME.) | 1 | |
| 10 | 6432A-AAW-B00U | COVER R FLOOR SIDE SUB ASSY (CANDY BLAZING RED) | 1 | |
| 10 | 6432A-AAW-B00W | COVER R FLOOR SIDE SUB ASSY (PANTHER BLACK ME.) | 1 | |
| 11 | 6433A-AAW-B00R | COVER L FLOOR SIDE SUB ASSY (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 11 | 6433A-AAW-B00T | COVER L FLOOR SIDE SUB ASSY (TECHNO BLUE ME.) | 1 | |
| 11 | 6433A-AAW-B00U | COVER L FLOOR SIDE SUB ASSY (CANDY BLAZING RED) | 1 | |
| 11 | 6433A-AAW-B00W | COVER L FLOOR SIDE SUB ASSY (PANTHER BLACK ME.) | 1 | |
| 12 | 90344-AAW-000 | NUT CLIP 5MM | 4 | |
| 13 | 93903-25380 | SCREW TAPPING 5X16 | 14 | |
| 14 | 94201-25250 | PIN, SPLIT, 2.5X25 | 2 | |
| 15 | 96211-08000 | BALL STEEL 8 MM | 2 |
