FOP-6A - BEADING ASSY. FR./RR. (OPTIONAL)

Hero Maestro EDGE 125 (May,2019) · 5 parts

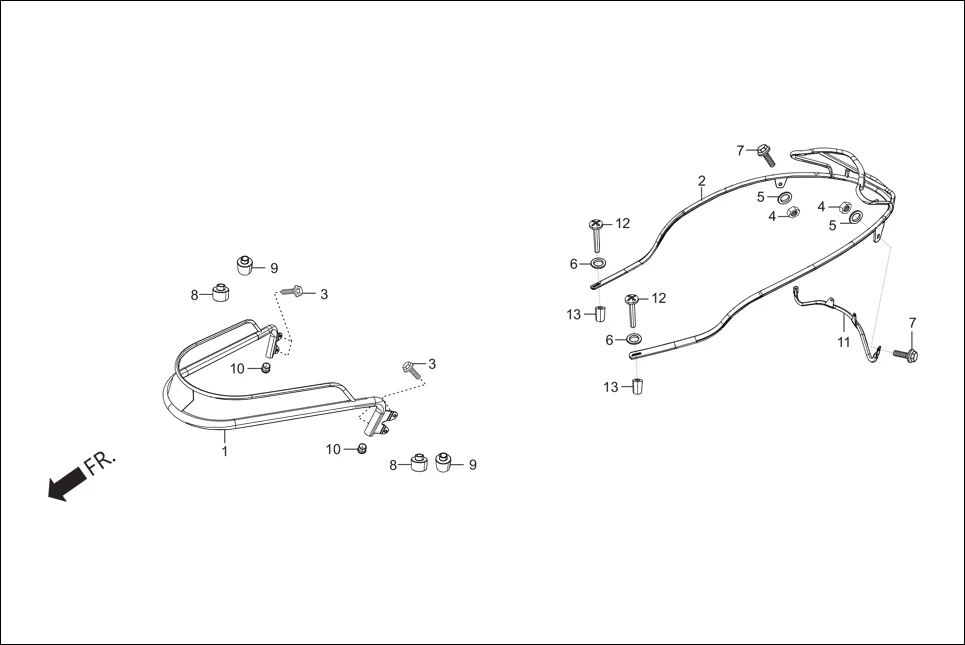

FOP-6A BEADING ASSY. FR./RR. (OPTIONAL) assembly diagram for Hero Maestro EDGE 125 (May,2019)

Parts in This Assembly (5)

Ref # Part Number Description Qty
3 93404-06030-00 BOLT WASH 6X30 4
4 94001-06000-0S NUT, HEX., 6 MM 2
5 94101-06700 WASHER, PLAIN, 6 MM 2
6 94103-06700 WASHER, PLAIN, 6 MM 2
7 95701-06012-00 BOLT, FLANGE, 6X12 2
