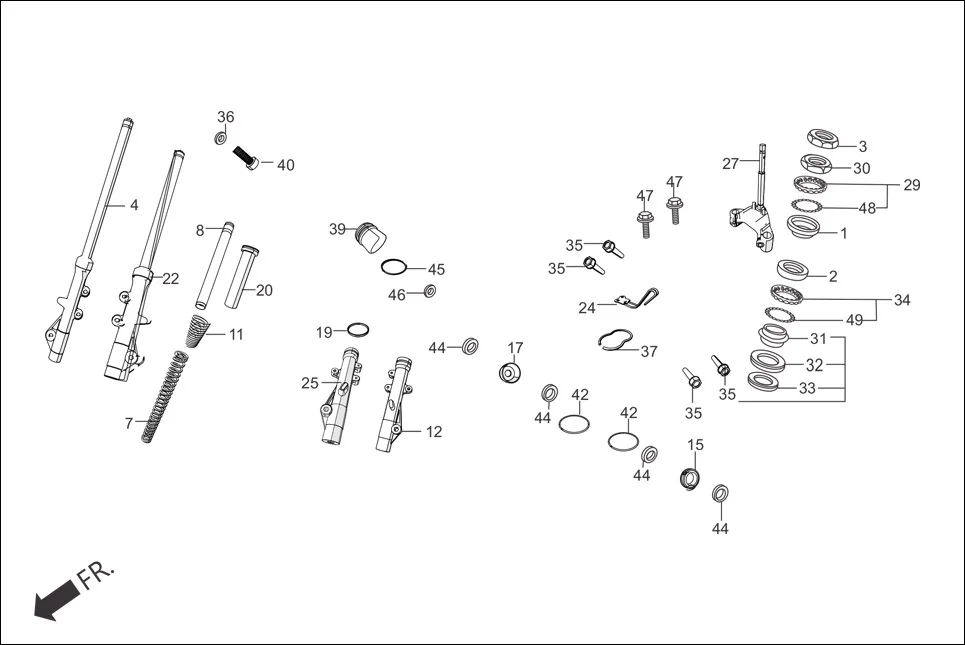

F-9-VX - STRG. STEM/FR. FORK
Hero Maestro EDGE (Sep, 2015) · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50301-KEM-900 | RACE, UP STRG., BALL | 1 | |
| 2 | 50302-KPL-900 | RACE, STRG., BOTTOM BALL | 1 | |
| 3 | 50306-KPL-900 | NUT, STRG. STEM, LOCK | 1 | |
| 4 | 51400-AAW-000 | FORK ASSY R FR | 1 | |
| 7 | 51401-AAW-010 | SPRING FR. FORK | 1 | |
| 8 | 51410-AAW-001 | PIPE COMP. FR. FORK | 1 | |
| 11 | 51412-KSP-901 | SPRING, REBOUND | 1 | |
| 12 | 51420-AAW-001 | CASE COMP R FR BOTTOM | 1 | |
| 15 | 51425-KST-901 | SEAL, DUST | 1 | |
| 17 | 51432-AAW-010 | PIECE,OIL LOCK | 1 | |
| 19 | 51437-KVN-901 | RING, PISTON | 1 | |
| 20 | 51440-AAW-001 | PIPE SEAT | 1 | |
| 22 | 51500-AAW-000 | FORK ASSY L FR | 1 | |
| 24 | 51501-AAW-000 | BRKT CABLE GUIDE | 1 | |
| 25 | 51520-AAW-001 | CASE COMP L FR BOTTOM | 1 | |
| 27 | 53200-AAW-300 | STEM COMP STRG | 1 | |
| 29 | 53210-KTP-900 | BALL, ASSY, STRG. | 1 | |
| 30 | 53211-KEM-900 | RACE, STRG. TOP CONE | 1 | |
| 31 | 53212-250-010 | RACE, STRG. BOTTOM CONE | 1 | |
| 32 | 53214-250-000 | DUST, SEAL STRG. (HEAD) | 1 | |
| 33 | 53215-KPL-900 | WASHER, STRG. HEAD DUST SEAL | 1 | |
| 34 | 53215-KTP-900 | BALL ASSY, STRG. | 1 | |
| 35 | 90001-AAW-000 | BOLT FLANGE BRIDGE FORK MTG. | 4 | |
| 36 | 90544-439-930 | WASHER, SPECIAL, 8 MM | 1 | |
| 37 | 90601-GF5-731 | RING OIL SEAL STOP | 1 | |
| 39 | 90123-AAW-001 | BOLT FR. FORK | 1 | |
| 40 | 90116-AAW-001 | BOLT SOCKET 8 MM | 1 | |
| 42 | 90651-AAW-000 | SNAP RING | 2 | |
| 44 | 91351-KPL-900 | O-RING,22.1 X 1.9 | 4 | |
| 45 | 91255-169-000R | OIL SEAL, 30 X 42 X 11 | 1 | |
| 46 | 91356-KAG-900 | O - RING | 1 | |
| 47 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 48 | 96211-05000 | BALL, STEEL #5 | 22 | |
| 49 | 96211-08000 | BALL STEEL 8 MM | 17 | |
