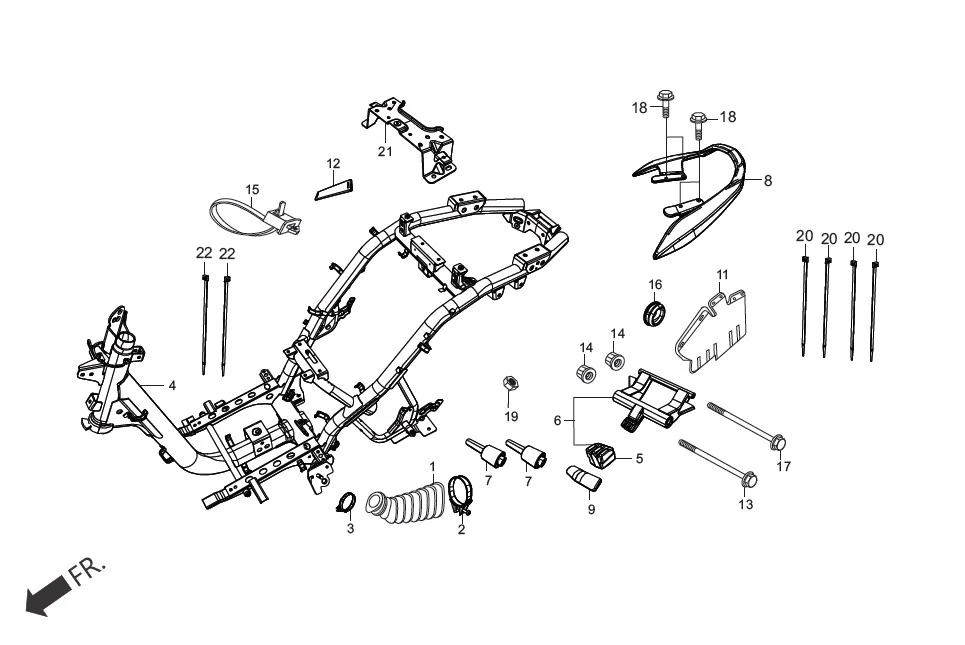

F-23-VX - FRAME BODY
Hero Maestro EDGE (Sep, 2015) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11345-AAW-000 | DUCT L COVER | 1 | |
| 2 | 11346-AAW-000 | BAND L COVER DUCT | 1 | |
| 3 | 11346-KCW-870 | BAND, L. COVER. DUCT | 1 | |
| 4 | 50100-AAW-001 | FRAME BODY COMP. | 1 | |
| 5 | 50352-GW0-730 | RUBBER, LINK STOPPER | 1 | |
| 6 | 50355-AAW-B00 | LINK, SUB ASSY., ENG. HANGER | 1 | |
| 7 | 50353-AAW-000 | BUSH RUBBER ,ENG HANGER | 2 | |
| 8 | 77300-AAW-000R | GRIP RR(PSWM(WH004P) | 1 | |
| 8 | 77300-AAW-000T | GRIP RR(PNB(NHB08M) | 1 | |
| 8 | 77300-AAW-000U | GRIP RR(SNSM(SG009M) | 1 | |
| 8 | 77300-AAW-000V | GRIP RR(CBR(R195C) | 1 | |
| 8 | 77300-AAW-000W | GRIP RR(TBM(BL002M) | 1 | |
| 8 | 77300-AAW-000Z | GRIP RR(MVG(SG013M) | 1 | |
| 8 | 77300-AAW-0001 | GRIP RR(MBS 400 (BL007M) | 1 | |
| 9 | 77310-AAW-000 | RUBBER PAD | 1 | |
| 11 | 80102-KTP-900 | PLATE, FRAME, BODY SPLASH GUARD | 1 | |
| 12 | 81252-KTP-900 | COVER , FRAME NUMBER | 1 | |
| 13 | 90106-GCC-000 | BOLT, FLANGE 10X238 | 1 | |
| 14 | 90304-KCS-920 | NUT`U 10 MM | 2 | |
| 15 | 90672-KPL-901 | BODY, CLIP | 1 | |
| 16 | 90862-GCC-000 | PLUG, FRAME, END | 1 | |
| 17 | 90105-KJ9-000 | BOLT, FLANGE 10X210 | 1 | |
| 18 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
| 19 | 94001-06070-0S | NUT, HEX., 6 MM | 1 | |
| 20 | 90657-AAW-300 | CABLE TIE (LONG) | 4 | |
| 21 | 50263-AAW-000 | RR. GRIP BRACKET ASSY. | 1 | |
| 22 | 90652-AAW-300 | CABLE TIE | 2 | |
