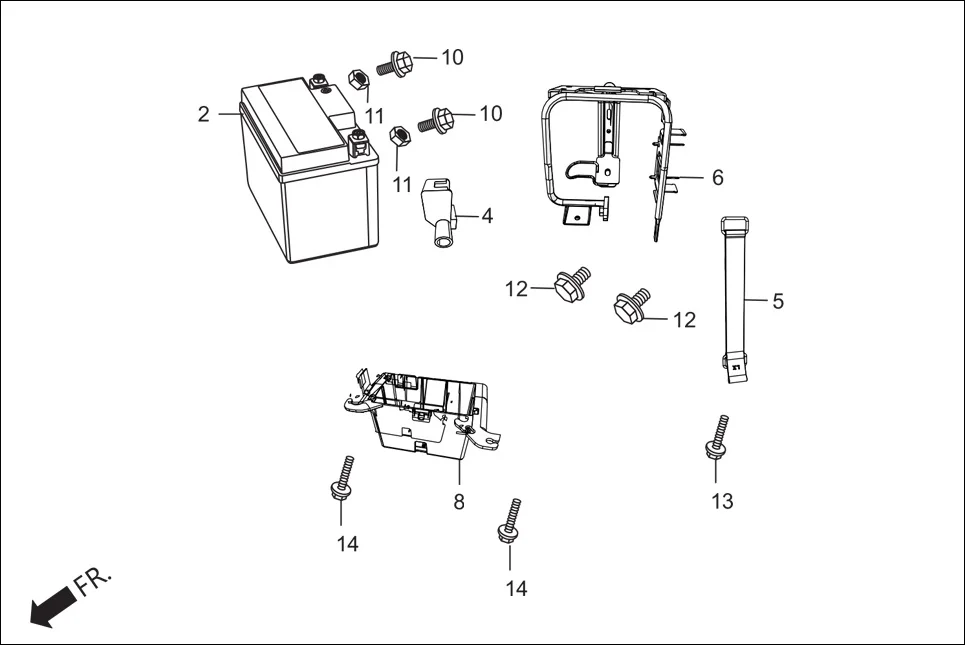

F-21-VX - BATTERY
Hero Maestro EDGE (Sep, 2015) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 4 | 32412-AAW-001 | COV. BAT TERMINAL | 1 | |
| 5 | 50327-AAW-000 | BAND BATTERY | 1 | |
| 6 | 50330-AAW-000 | TRAY COMP BATTERY | 1 | |
| 8 | 50380-AAW-000 | BATTERY BOX | 1 | |
| 10 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 11 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 12 | 90102-AAW-000 | BOLT. SPECIAL 6X20 | 1 | |
| 13 | 90116-AAW-010 | BOLT,SOCKET 8MM | 1 | |
| 14 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
