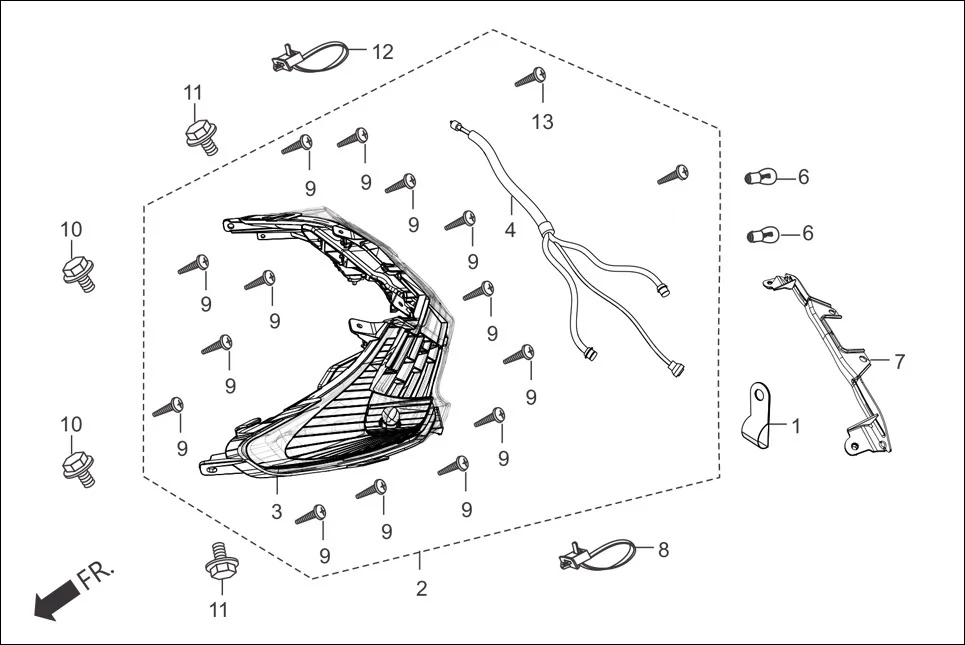

F-20-VX - REAR COMBINATION LIGHT
Hero Maestro EDGE (Sep, 2015) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32175-AAW-000 | CLAMP | 1 | |
| 2 | 3370B-AAW-00099 | LIGHT ASSY REAR COMB(W/O BULB) | 1 | |
| 3 | 33710-AAW-00099 | UNIT,RR COMB | 1 | |
| 4 | 33715-AAW-001 | SOCKET COMP | 1 | |
| 6 | 34930-AAC-700 | BULB(12V 10W) AMBER | 2 | |
| 7 | 83562-AAW-000 | TAIL LIGHT MTG BRACKET FR | 1 | |
| 8 | 91547-AAW-000 | BAND HARN | 1 | |
| 9 | 93913-24120 | SCREW, TAPPING, 4 X 10 | 14 | |
| 10 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 11 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 12 | 37215-AAW-000 | BAND CLIP | 1 | |
| 13 | 93913-AAW-001 | SCREW 3X12 | 1 | |
